Description

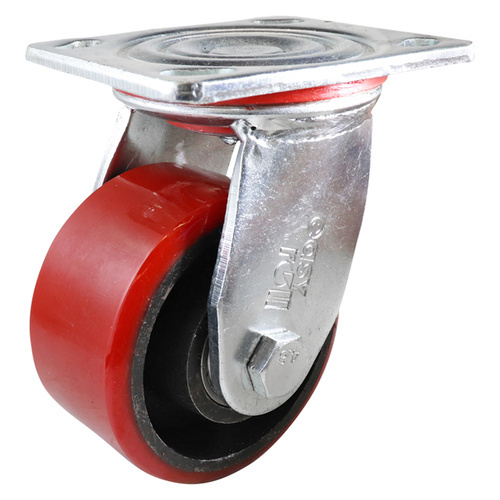

EasyRoll Red Urethane on Cast Iron Swivel Plate Castor

Manufacturing, Factory, Materials Handling
Suitable for use on, heavy sales counters, dollies, trolleys, tool boxes, stillages, Industrial Laundry Equipment, Industrial hospitality equipment, heavy shop fittings, materials handling

Key Points

Attractive Zinc plated heavy-duty fabricated housing is suited to medium to heavy industrial applications.
Heavy-duty fabricated housing with double headset bearing for strength allows the castor to withstand high-impact loads.
Urethane on Cast Iron offers the highest load capacity while protecting the floor surface.
Precision bearings in the wheel for low rolling resistance and minimal push effort.
Headset seals protect the bearings from dust & grime, lowering the maintenance & increasing the life of the castor.

Note

Specifications

AIMS SKU A0182820

Brand EasyRoll

Model Number J22AZ85K100

Barcode Number 1000000043778

Tread Width (mm) 41 - 50

Fork Material Zinc Plated Welded Steel

Plate Size (mm) 114 x 100

Working Height (mm) 144

Finished Height (mm) 141 - 160

Hole Centres (mm) 76-92 x 67-76

Fitting Type Plate Mount Castors

Tyre/Wheel Material Urethane on Cast Iron

Weight Category 300kg - 399kg

Color Red/ Black/ Silver

Wheel Diameter 100mm

Castor Type Swivel

Load Capacity 320kg
