Description

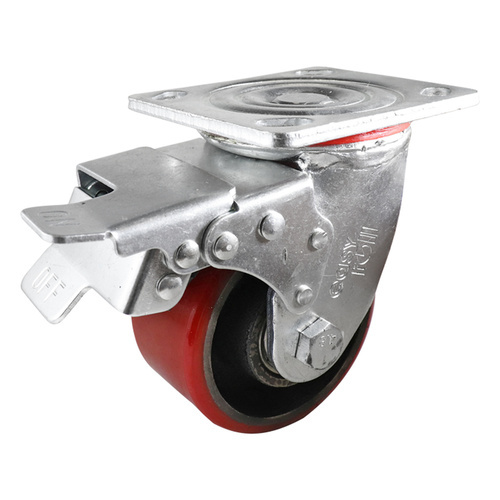

EasyRoll Urethane on Cast Iron Swivel Plate Brake Castor

Manufacturing, Factory, Materials Handling.
Suitable for use on, heavy sales counters, dollies, trolleys, tool boxes, stillages, Industrial Laundry Equipment, Industrial hospitality equipment, heavy shop fittings, and materials handling.

Key Points

Attractive Zinc plated heavy-duty fabricated housing is suited to medium to heavy industrial applications.
Heavy-duty fabricated housing with double headset bearing for strength allows the castor to withstand high-impact loads, plus a total locking brake for securing the unit in place.
Urethane on Cast Iron offers the highest load capacity while protecting the floor surface.
Precision bearings in the wheel for low rolling resistance and minimal push effort.
Headset seals protect the bearings from dust & grime, lowering the maintenance & increasing the life of the castor

Note

Specifications

AIMS SKU A0182829

Brand EasyRoll

Model Number J22TZ85K150

Barcode Number 1000000043976

Tread Width (mm) 41 - 50

Fork Material Zinc Plated Welded Steel

Plate Size (mm) 114 x 100

Working Height (mm) 191

Finished Height (mm) 181 - 200

Hole Centres (mm) 76-92 x 67-76

Fitting Type Plate Mount Castors

Tyre/Wheel Material Urethane on Cast Iron

Weight Category 400kg - 499kg

Color Red/ Black/ Silver

Wheel Diameter 150mm

Castor Type Swivel Brake

Load Capacity 410kg
