Specifications

AIMS SKU A0170967
Brand ECO
Model Number SQY7/16-RS/ECO

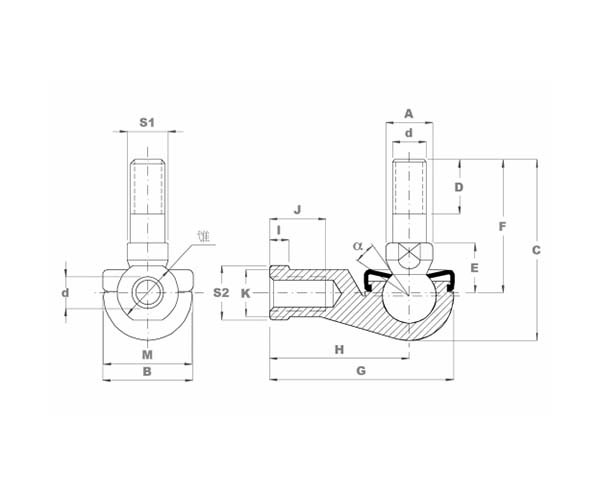

H (mm) 50
Load Stat (kN) 16
α Degree 25
I (mm) 7
G - UNF 7/16-20
M (mm) 31
J (mm) 25
L (mm) 22
k (mm) 17.5
C (mm) 57.5
g (mm) 66
D (mm) 17
b (mm) 32
E (mm) 19
F (mm) 42
A (mm) 17
S2 (mm) 19
S1 (mm) 15

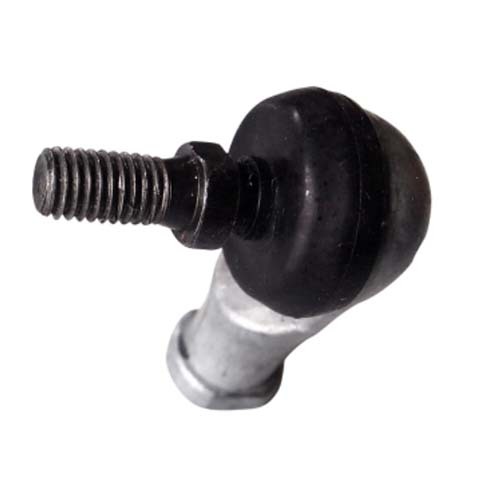

• Type Studded Rod End
