Description

***Special Order. Contact AIMS for assistance.***

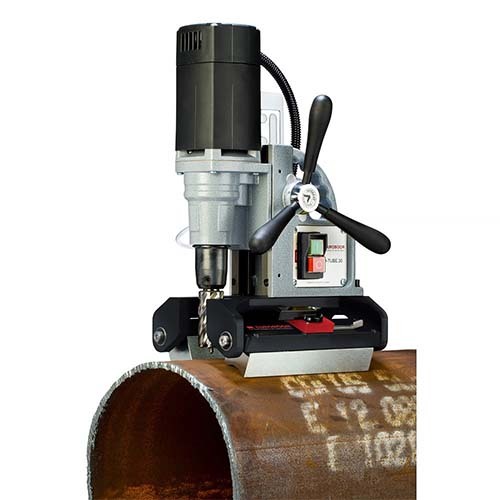

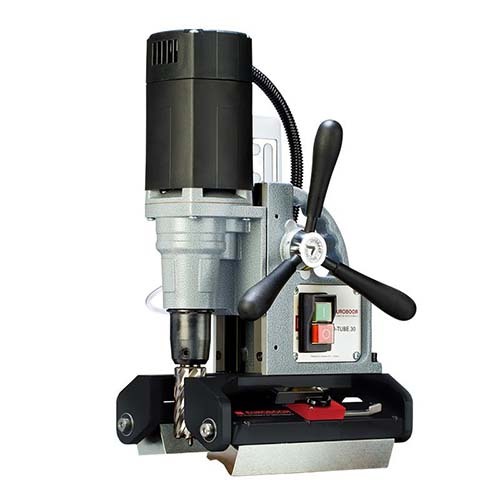

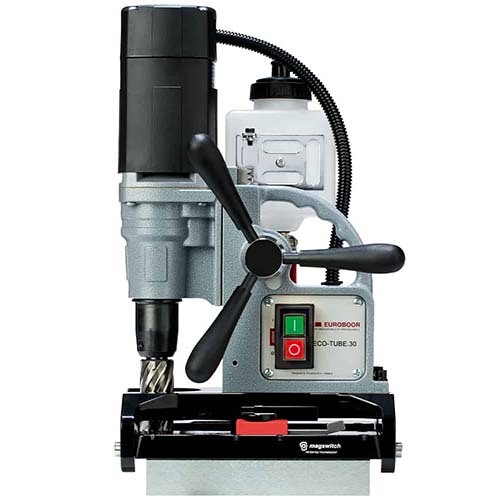

Euroboor Magnetic Drilling Machine - ECO.TUBE-30

  • Magnetic Drilling Machine for pipe drilling application
  • The TUBE.30 with patented shallow-field magnetic technology offers an incredibly strong grip, even on steel as thin as 3 mm.
  • The patent-pending base automatically pivots to conform to any pipe Ø 75 mm or larger.
  • The magnets do not require electricity, so all the power goes to the motor.
  • This also offers increased safety as the tool will not release from the target material in the event of an unintentional power loss.
  • With its 900W power the TUBE.30 cuts holes between Ø 12 and 30 mm easily and quickly.

Features

  • High precision slide & rail construction
  • Integrated oil bath gearbox
  • Morse Taper 3 spindle
  • External access to carbon brushes
  • Digital readout
  • Smart restart

Technical Data

  • Annular Cutters: 12 - 30mm Dia (mild steel)
  • Twist Drills: 1 - 13mm Dia
  • Stroke: 90mm
  • Weight: 11kg
  • Magnetic Force: 5320kg
  • Power: 900W
  • Speed (no load): 775min-1
  • Speed (load): 400min-1
  • Spindle: MT3 19.05mm Weldon
  • Voltage: 220 - 240V / 50 - 60Hz

Specifications

  • AIMS SKU A0146059
  • Brand Euroboor
  • Model Number ECO.TUBE-30
  • Type Magnetic Drill Press
  • Voltage 220-240 V
  • Minimal Material Thickness 3 mm
  • Minimal Pipe Diameter 76.2 mm
  • Frequency 50-60 Hz
  • Spindle (weldon) 19.05 mm
  • Spindle Speed (with Load) 400 rpm
  • Spindle Speed (no Load) 775 rpm
  • Total Power 950 W
  • Motor Power 900 W
  • Magnetic Force 532 kg
  • Magnet Dimension 187 x 165 x 83 mm
  • Weight (without Power Cords And Handles) 10.3 kg
  • Countersinking Diameter 10-35 mm
  • Twist Drilling Diameter (weldon) 1-13 mm
  • Annular Cutting Diameter 12-30 mm
  • Width 185 mm
  • Stroke 90 mm
  • Length 275 mm
  • Height 326-416 mm
  • Item Type Pipe Cutting
SKU: A0146059

Euroboor Drilling Machine Pipe Cutting Magnetic 30mm 950W 50Hz ECO.TUBE-30

Euroboor Magnetic Drilling Machine - ECO.TUBE-30

$3,493.03
