Extra Light Two Bolt Flange Zinc Alloy Bearing Housing - FYH

Description

Wide Inner Ring Housings (Extra Light Two Bolt Flange Bearing Housing)

Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

AIMS SKU A0147593

Brand FYH

Model Number FL002/FYH

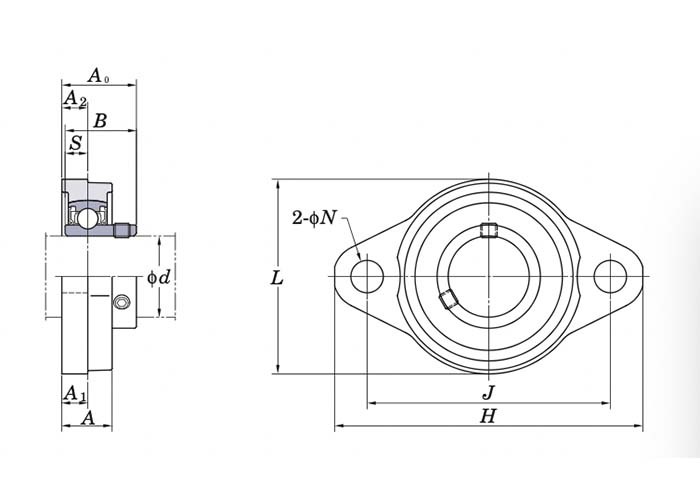

A1 (mm) 6.5

S (mm) 5.5

A (mm) 13

b (mm) 16.5

H (mm) 67

L (mm) 42

Factor Fo 13.9

Bolt Size (mm) M6

A0 (mm) 17.5

A2 (mm) 6.5

J (mm) 53

N (mm) 7

Dynamic Load (cr) kN 5.6

Static Load (c0r) kN 2.85

Shaft Diameter d (mm) 15

Type Bearing Housing
System of Measurement Metric
Material Zinc Alloy
Item Type Extra Light Two Bolt Flange
