Description

EZO Ball Bearing Metal Shields - C3 Clearance

  • ZZ (Metal Shields).
  • C3 specification has a higher internal clearance compared to a standard.
  • Miniature Bearing - Metric.

About Ezo Miniature Bearings

  • Miniature bearings are defined by their very small rolling elements, with bore diameters no larger than 10mm (0.3937").
  • Bearings of this size enable high-speed rotation with minimal noise or vibration.
  • Thanks to their excellent frictional torque performance, these bearings are well-suited to a range of high-speed motor applications, including (but not limited to):
    • Fan motors
    • Spindle motors
    • Stepping motors
    • Rotary encoders
    • Dental handpieces
    • Drills
    • Medical devices

About Ezo Ball Bearing

  • Ball bearings are simple but powerful components that minimize friction in rotational applications ranging from industrial machinery to office equipment.
  • Spherical ball bearings have only minimal contact with their containing races, allowing them to transfer radial or axial loads with rapid, fluid motion.
  • A variety of housing shapes and lubrication options improve versatility while promoting performance across a long working life.

Specifications

  • AIMS SKU A0177868
  • Brand EZO
  • Model Number 609-ZZC3/EZO
  • Cage Type J
  • Ball Complement Qty Z (pcs) 7

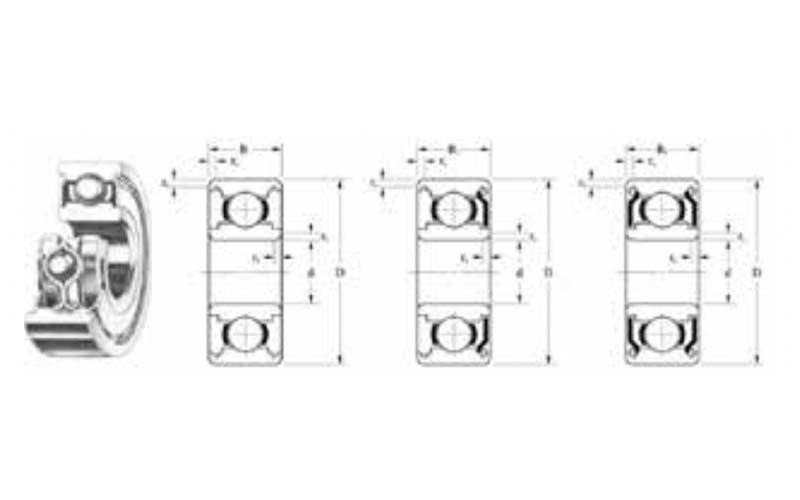

  • Width B1 (in) 0.276
  • Width B1 (mm) 7.0
  • Width B (in) 0.276
  • Bore Diameter d inch 0.354
  • Bore Diameter d mm 9.0
  • Weight (Reference) 2 Shields (g) 14
  • Ball Complement Size Dw (in) 0.158
  • Ball Complement Size Dw (mm) 3.969
  • Bore Diameter x Outer Diameter x Width (mm) 9 x 24 x 7
  • Max Speed Oil (x1000min -1) 36
  • Max Speed Grease (x1000min -1) 30
  • Chamfer rs (min) (in) 0.012
  • Chamfer rs (min) (mm) 0.30
  • Outer Diameter D (in) 0.945
  • Load Rating Cor (N) 1430
  • Load Rating Cr (n) 3350
  • Width B (mm) 7.0
  • Outer Diameter D (mm) 24.0
  • Type Ball Bearing
  • Series Type 600 Series
SKU: A0177868

EZO Ball Bearing Metal Shields - C3 Clearance 9 x 24 x 7mm

EZO Ball Bearing Metal Shields - C3 Clearance
