Specifications
- AIMS SKU A0177861
- Brand EZO
- Model Number 629-ZZC3/EZO
- Cage Type J
- Ball Complement Qty Z (pcs) 7
- Width B1 (in) 0.315
- Width B1 (mm) 8.0
- Width B (in) 0.315
- Bore Diameter d inch 0.354
- Bore Diameter d mm 9.0
- Weight (Reference) 2 Shields (g) 18.9
- Ball Complement Size Dw (in) 0.188
- Ball Complement Size Dw (mm) 4.762
- Bore Diameter x Outer Diameter x Width (mm) 9 x 26 x 8
- Max Speed Oil (x1000min -1) 33
- Max Speed Grease (x1000min -1) 28
- Chamfer rs (min) (in) 0.024
- Chamfer rs (min) (mm) 0.60
- Outer Diameter D (in) 1.024
- Load Rating Cor (N) 1970
- Load Rating Cr (n) 4580
- Width B (mm) 8.0
- Outer Diameter D (mm) 26.0
- Type Ball Bearing
- Series Type 620 Series
SKU: A0177861

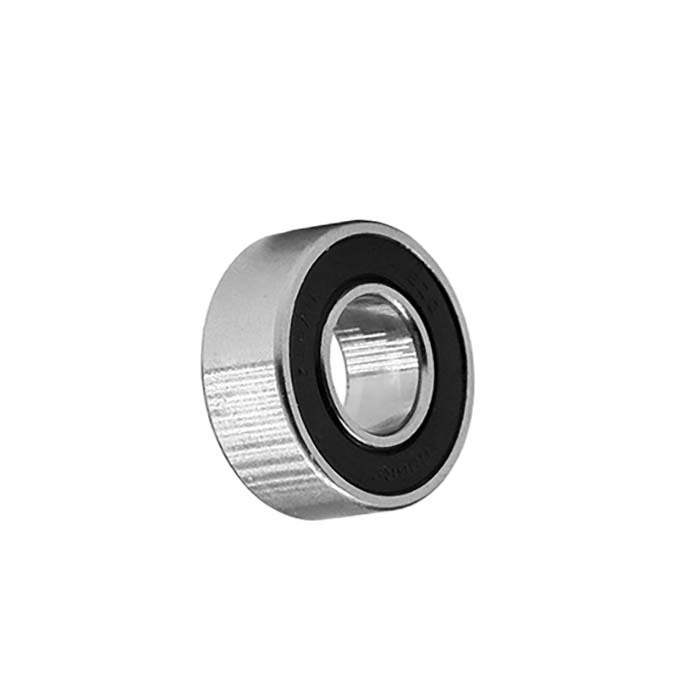

EZO Ball Bearing Metal Shields - C3 Clearance 9 x 26 x 8mm
EZO Ball Bearing Metal Shields - C3 Clearance
$7.85
