Description

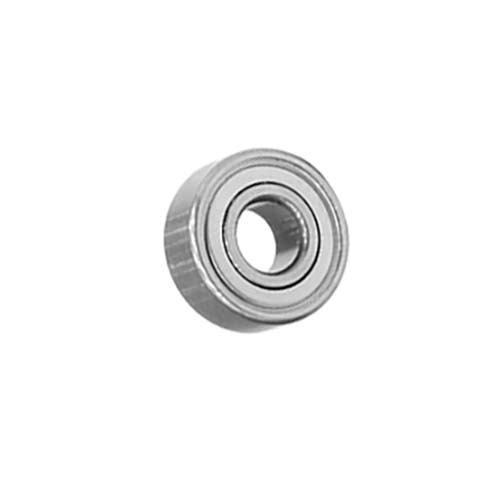

EZO Ball Bearing Metal Shields - MR Series

  • ZZ (Metal Shields).
  • Miniature Bearing - Metric.

About Ezo Miniature Bearings

  • Miniature bearings are defined by their very small rolling elements, with bore diameters no larger than 10mm (0.3937").
  • Bearings of this size enable high-speed rotation with minimal noise or vibration.
  • Thanks to their excellent frictional torque performance, these bearings are well-suited to a range of high-speed motor applications, including (but not limited to):
    • Fan motors
    • Spindle motors
    • Stepping motors
    • Rotary encoders
    • Dental handpieces
    • Drills
    • Medical devices

About Ezo Ball Bearing

  • Ball bearings are simple but powerful components that minimize friction in rotational applications ranging from industrial machinery to office equipment.
  • Spherical ball bearings have only minimal contact with their containing races, allowing them to transfer radial or axial loads with rapid, fluid motion.
  • A variety of housing shapes and lubrication options improve versatility while promoting performance across a long working life.

Specifications

  • AIMS SKU A0177827
  • Brand EZO
  • Model Number MR95-ZZ/EZO
  • Cage Type W
  • Ball Complement Qty Z (pcs) 8
  • Width B1 (in) 0.118
  • Width B1 (mm) 3.0
  • Width B (in) 0.098
  • Bore Diameter d inch 0.197
  • Bore Diameter d mm 5.0
  • Weight (Reference) 2 Shields (g) 0.58
  • Ball Complement Size Dw (in) 0.047
  • Ball Complement Size Dw (mm) 1.2
  • Bore Diameter x Outer Diameter x Width (mm) 5 x 9 x 3
  • Max Speed Oil (x1000min -1) 71
  • Max Speed Grease (x1000min -1) 60
  • Chamfer rs (min) (in) 0.006
  • Chamfer rs (min) (mm) 0.15
  • Outer Diameter D (in) 0.354
  • Load Rating Cor (N) 168
  • Load Rating Cr (n) 432
  • Width B (mm) 2.5
  • Outer Diameter D (mm) 9.0
SKU: A0177827

EZO Ball Bearing Metal Shields MR Series 5 x 9 x 3mm

EZO Ball Bearing Metal Shields MR Series
