Description

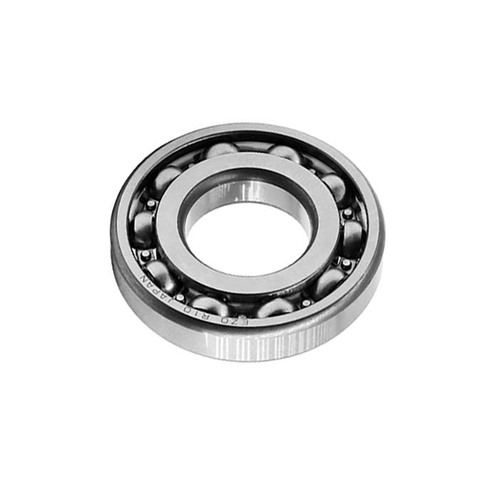

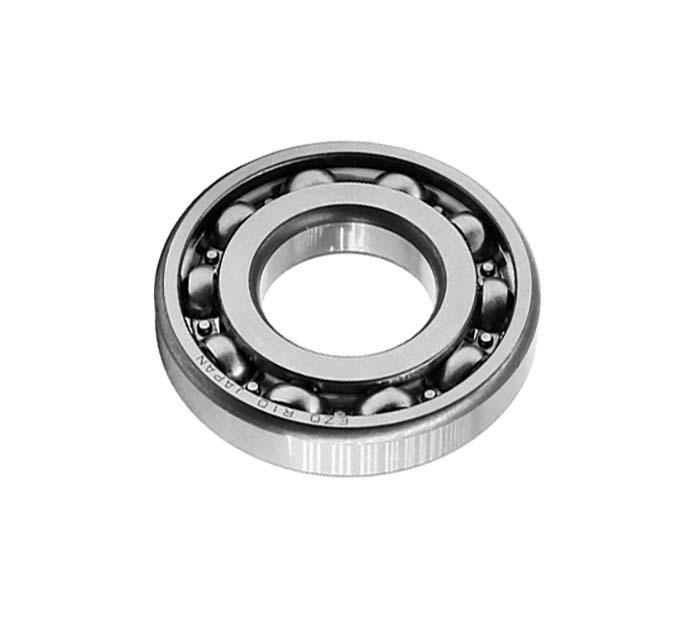

EZO Inch Ball Bearing Open

  • Imperial Ball Bearing.
  • Opening Bearing.

About Ezo Ball Bearing

  • Ball bearings are simple but powerful components that minimize friction in rotational applications ranging from industrial machinery to office equipment.
  • Spherical ball bearings have only minimal contact with their containing races, allowing them to transfer radial or axial loads with rapid, fluid motion.
  • A variety of housing shapes and lubrication options improve versatility while promoting performance across a long working life.

Specifications

  • AIMS SKU A0177803
  • Brand EZO
  • Model Number R2/EZO

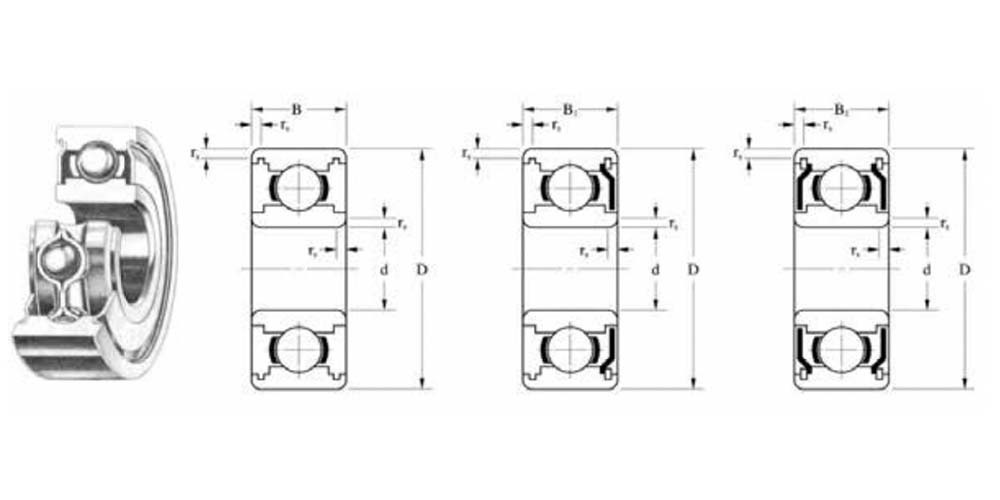

  • Outer Diameter D (mm) 9.525
  • Bore Diameter d (mm) 3.175
  • Bore Diameter x Outer Diameter x Width (in) 1/8 x 3/8 x 5/32"
  • Bore Diameter d (in) 0.125
  • Outer Diameter D (in) 0.375
  • Chamfer rs (min) (mm) 0.30
  • Chamfer rs (min) (in) 0.012
  • IR Width B (mm) 3.967
  • IR Width B (in) 0.156
  • Type Ball Bearing
  • Series Type R Series
SKU: A0177803

EZO Inch Ball Bearing Open 1/8 x 3/8 x 5/32"

EZO Inch Ball Bearing Open
