Description

EZO Inch Ball Bearing Rubber Seals

  • Imperial Ball Bearing.
  • Rubber Seals (2RS).

About Ezo Ball Bearing

  • Ball bearings are simple but powerful components that minimize friction in rotational applications ranging from industrial machinery to office equipment.
  • Spherical ball bearings have only minimal contact with their containing races, allowing them to transfer radial or axial loads with rapid, fluid motion.
  • A variety of housing shapes and lubrication options improve versatility while promoting performance across a long working life.

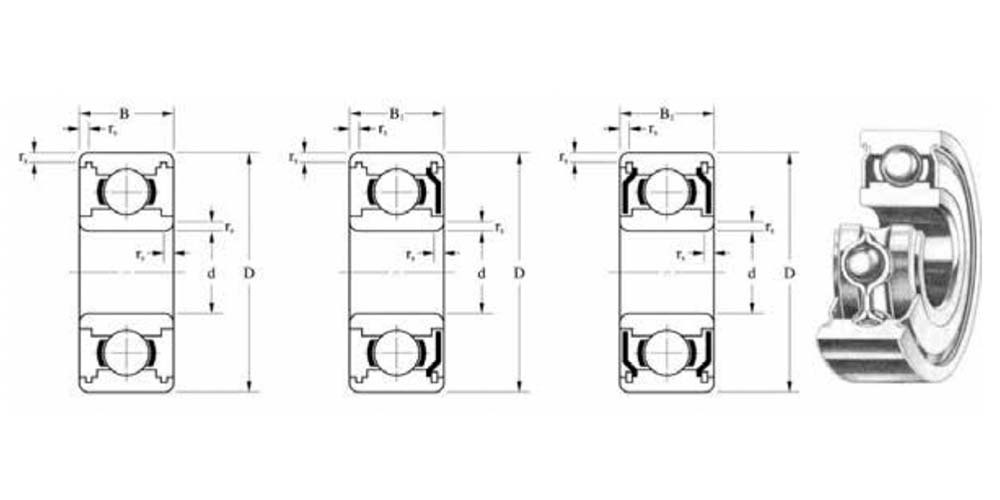

Specifications

  • AIMS SKU A0177811
  • Brand EZO
  • Model Number R2-2RS/EZO
  • Width (mm) 3.967
  • Chamfer rs (min) (mm) 0.30
  • Weight (Reference) 2 Shields (g) 1.39
  • Ball Complement Size Dw (in) 0.063
  • Ball Complement Size Dw (mm) 1.588
  • Cage Type J
  • Max Speed Oil (x1000min -1) 78
  • Max Speed Grease (x1000min -1) 66
  • IR Width B (in) 0.156
  • IR Width B (mm) 3.967
  • Chamfer rs (min) (in) 0.012
  • Outer Diameter D (in) 0.375
  • Bore Diameter d (in) 0.125
  • Bore Diameter x Outer Diameter x Width (in) 1/8 x 3/8 x 5/32"
  • Load Rating Cor (N) 218
  • Load Rating Cr (n) 633
  • Width (in) 0.156
  • Bore Diameter d (mm) 3.175
  • Outer Diameter D (mm) 9.525
  • Type Ball Bearing
  • Series Type R Series
SKU: A0177811

EZO Inch Ball Bearing Rubber Seals 1/8 x 3/8 x 5/32"
