Description

Descriptions

  • High quality medium industrial 100mm Green Reflex Rubber castor with 170Kg capacity. Elastic Rubber is the most resilient rubber available and has been designed to virtually eliminate the flat spots common to rubber castors.
  • Suitable for use on, sales counters, dollies, trolleys, tool boxes, stillages, engine cranes, workshop equipment, vending machines, arcade games, general materials handling


Key Points:
- Robust & attractive Zinc plated housing is suited to all medium Industrial applications
- Fixed plate for straight tracking during transport
- Reflex rubber is the best quality rubber available for maximum shock absorption for high impact loads & is resistant to forming flat spots when left stationary.
- Double Precision bearings in the wheel for low rolling resistance and minimal push effort
- Headset seals & Thread Guards protect the bearings from dust & grime, lowering the maintenance & increasing the life of the castor

Specifications

  • AIMS SKU A0049298
  • Brand EasyRoll
  • Model Number I33AZ47K100
  • Barcode Number 9315570903042
  • Wheel Diameter (mm) 100
  • Capacity (kg) 170
  • Tread Width (mm) 31 - 40
  • Bearing Type Double Precision Bearings
  • Plate Size (mm) 105 x 85
  • Working Height (mm) 128
  • Finished Height (mm) 121 - 140
  • Hole Centres (mm) 80 x 60
  • Weight Category 100kg - 199kg
  • Group Code I3
  • Type Fixed Plate Castor
  • Colour Green
  • Motion Fixed
  • Frame/Hub Material Zinc Alloy
  • Indoor Use Yes
  • Outdoor Use Yes
  • Tyre/Wheel Material Green Reflex Rubber
SKU: A0049298

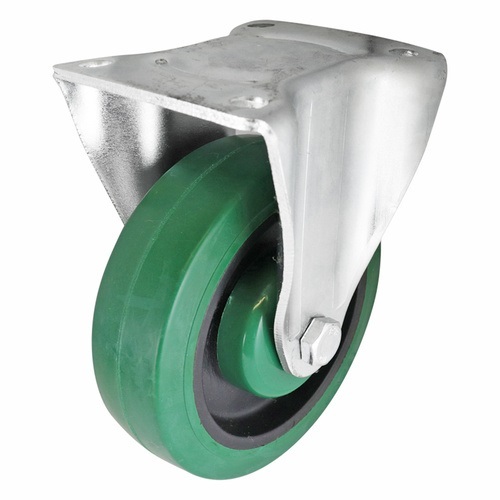

100mm Fixed Plate Castor - Reflex Rubber Wheel Green I3

EasyRoll Green Rubber Fixed Plate Castor
