Specifications

AIMS SKU A0152777
Max RPM 7500
Torque Nm 19

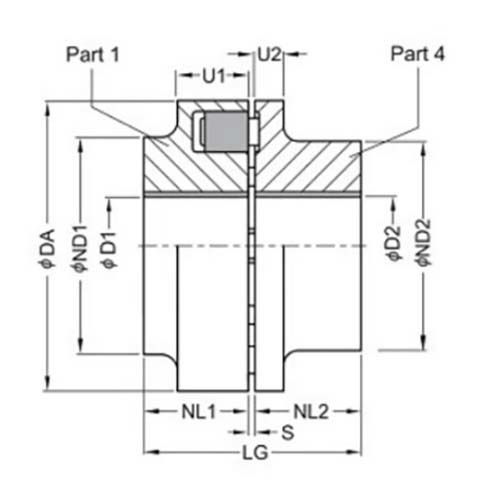

D1 Max (mm) 19
D2 Max (mm) 24
Dimension DA (mm) 58
Dimension Nd1 (mm) 58
Dimension Nd2 (mm) 40
Dimension Nl1/nl2 (mm) 20
Dimension S (mm) 3
Dimension U1 (mm) 20
Dimension U2 (mm) 8
Dimension Lg (mm) 43

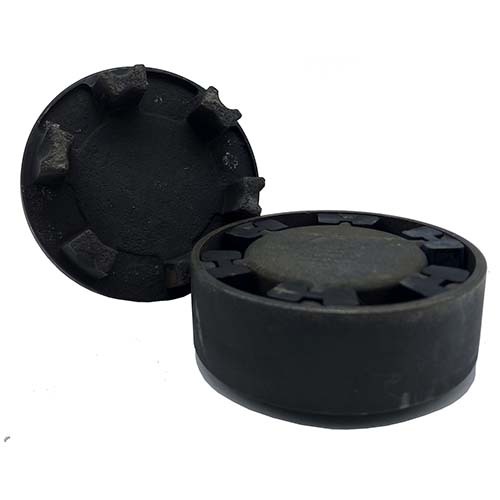

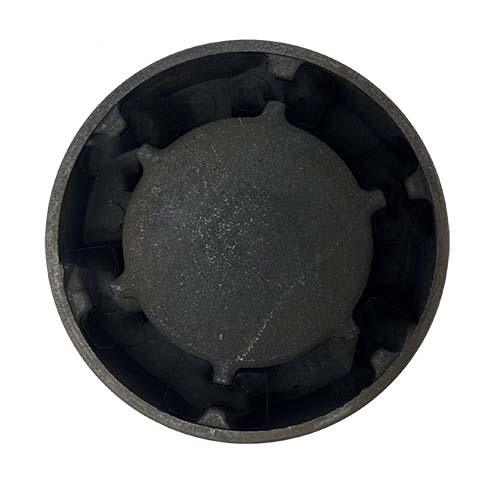

• Type Flexible Coupling Pilot Bore
