Flexible Coupling Tyre F50 - FRAS Fire Resistant - Finer Power Transmissions

Description

Flexible Coupling - FRAS Fire Resistant

FRAS Fire Resistant.

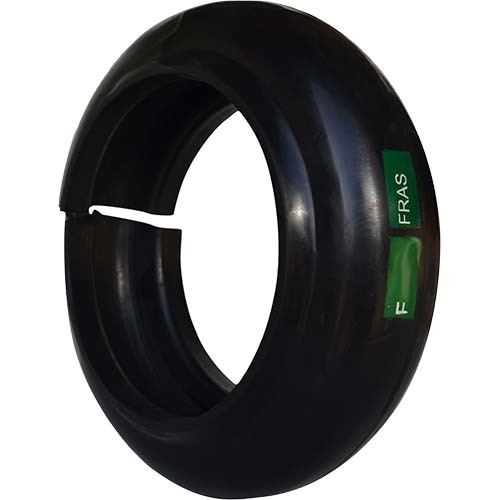

About Flexible Tyre Coupling

Consisting of two flanges, the two halves are joined by a rubber tyre.
The tyre itself is torsionally soft and flexible, this allows the Tyre Coupling to compensate for large amounts of shock loading and backlash, as well as both parallel and axial misalignment.

Specifications

AIMS SKU A0152766

Size F50

Max. Speed (rpm) 4500

Power @ 100 Rpm In Kw 0.69

Nominal Torque 66

Bore B Max. (mm) 32

Bore B Min. (mm) 11

Max. Misalignment Parallel (°) 1.3

Max. Misalignment Angular (°) 4

End Float (mm) 1.7

Type Flexible Tyre Coupling

Calculate Shipping

Resources

Tyre Couplings Specifications Taperlock and Pilotbore Catalogue
