Flexible Coupling Tyre F60 - FRAS Fire Resistant - Finer Power Transmissions

Description

Flexible Coupling - FRAS Fire Resistant

FRAS Fire Resistant.

About Flexible Tyre Coupling

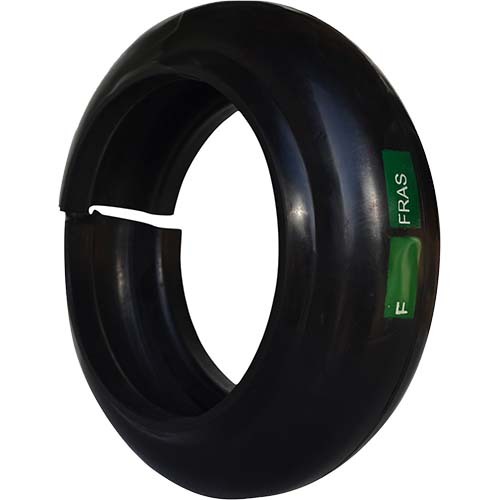

Consisting of two flanges, the two halves are joined by a rubber tyre.
The tyre itself is torsionally soft and flexible, this allows the Tyre Coupling to compensate for large amounts of shock loading and backlash, as well as both parallel and axial misalignment.

Specifications

AIMS SKU A0152767

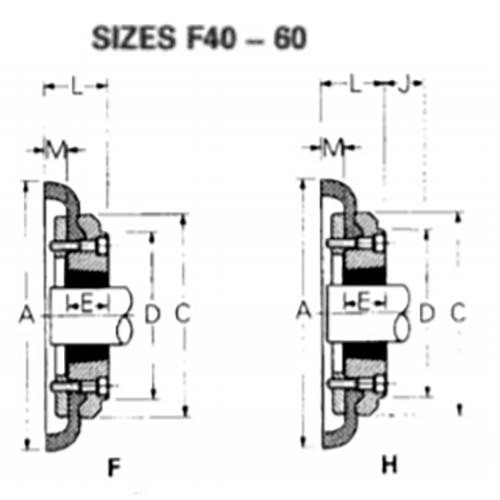

Size F60

Max. Speed (rpm) 4000

Power @ 100 Rpm In Kw 1.33

Nominal Torque 127

Bore B Max. (mm) 42

Bore B Min. (mm) 14

Max. Misalignment Parallel (°) 1.6

Max. Misalignment Angular (°) 4

End Float (mm) 2

Type Flexible Tyre Coupling

Calculate Shipping

Resources

Tyre Couplings Specifications Taperlock and Pilotbore Catalogue
