Description

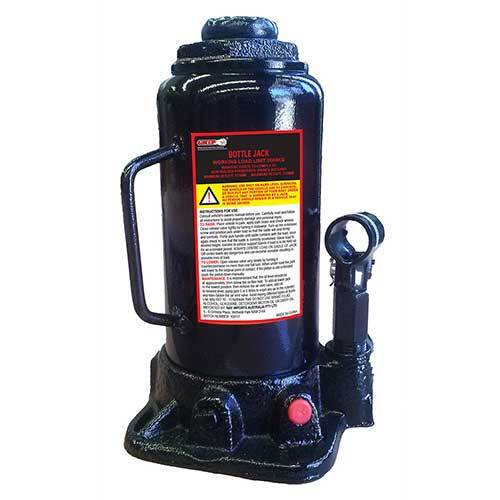

Fully Welded Hydraulic Bottle Jack

  • Bottle style hydraulic jack for the lifting of vehicles or other heavy components and/or equipment so that maintenance can be performed.

Feature

  • Heavy-duty steel construction, fully seam welded base and top cap for superior leak resistance.
  • Fully machined steel (not cast iron) heavy-duty base plate.
  • Quality chrome hydraulic ram and piston pump.
  • Black baked enamel finish for corrosion resistance.
  • Australian Standard compliance.

Safety Notice

  • The jack should be used on hard, level surfaces.
  • The wheels of the vehicle to be chocked.
  • Do not put a portion of your body under a vehicle supported by a jack.
  • No person should remain in a vehicle that is being jacked.
  • Do not exceed the working load limit.

Please Note:

  • Vertical lifts only, if the jack is tilted to any angle other than the vertical position from the base plate the hydraulic system will not operate.

Maintenance Note:

  • It is recommended that the oil level should be approximately 3mm below the oil filler hole.
  • To add oil lower the jack to the lowest position, then remove the air vent valve, add oil to the desired level, pump jack 5 or 6 times to expel any air in the cylinder, and then fasten the air vent valve. Use only ISO10-S hydraulic fluid.
  • DO NOT USE BRAKE FLUID, ALCOHOL, GLYCERINE, DETERGENT, MOTOR OIL OR DIRTY OIL.

Specifications

  • AIMS SKU A0124262
  • Brand Grip
  • Model Number 44102
  • Barcode Number 9335319028003
  • Minimum Height (mm) 175
  • Maximum Height (mm) 339
  • Working Load Limit (kg) 2000
  • Hydraulic Lift Height (mm) 116
  • Screw Adjustment Height (mm) 60
  • Australian Standard AS/NZS 2693: 2007
  • Packaged Dimension (mm) 125(L) x 117(W) x 200(H)
  • Weight (nett) 5kg
  • Type Hydraulic Bottle Jack
SKU: A0124262

Grip® Fully Welded Hydraulic Bottle Jack 2000 kg
