Specifications

AIMS SKU A0106748
Brand FYH
Model Number ER209/FYH
Type Ball Bearing Inserts ER200/SER200

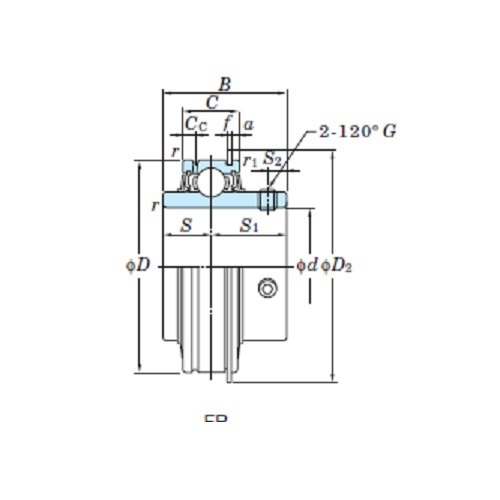

D2 (mm) 91.4
Item Type Grub Screw Ball Bearing
C (mm) 1.102
Dynamic Radial Load Rating 34.1
Static Radial Load Rating 21.3
r (min) mm 0.043
S (mm) 19
S1 (mm) 30.2
S2 (mm) 8
Cc (mm) 6
A (mm) 3.18
F (mm) 1.65
Shaft Diameter (d) mm 45
Nominal Bearing Outer (D) mm 3.346
Nominal Inner Ring Width (B) mm 1.937
