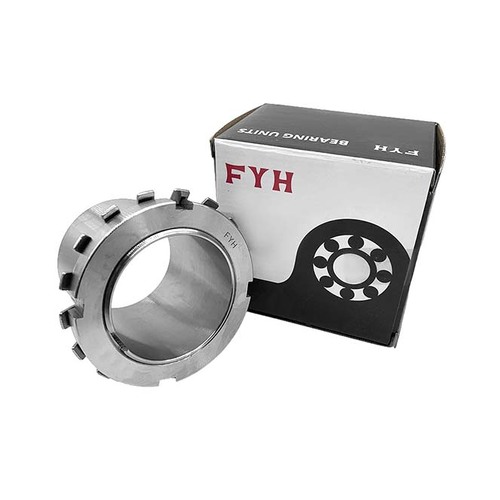

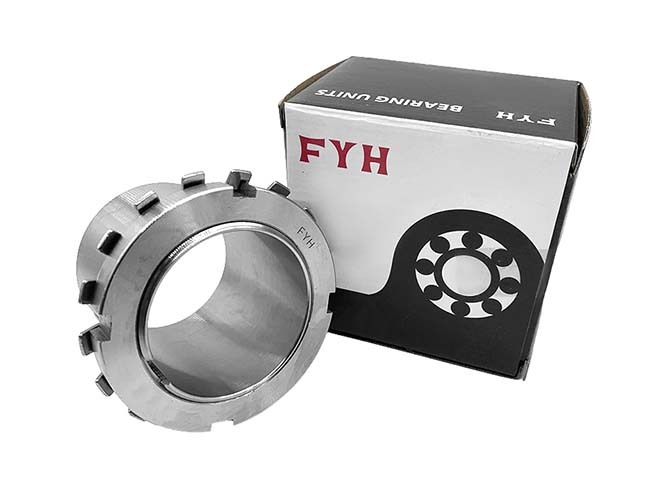

FYH H3100 Series Bearing Adapter Sleeve Metric

Description

FYH H3100 Series Bearing Adapter Sleeve Metric

Metric.
Proper assembly of adapter sleeves can create excellent holding power on the shaft.

***Catalogue Dimensions are Reference Only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

Specifications

AIMS SKU A0201311

Brand FYH

Model Number H3120/FYH

Net Weight (kg) 1.8

Bore (mm) 90

Matched Locking Nut KM20

B2 (mm) 20

(d2) mm 130

B1 (mm) 76

Matched Locking Washer MB20

(d1) mm 90

Type Adaptor Sleeve
System Measurement Metric

Calculate Shipping

Resources

Technical Data Sheet
