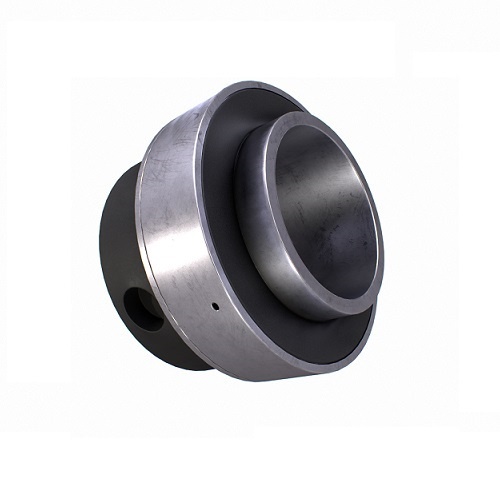

FYH Imperial Ball Bearing Inserts NA200 Series

Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

NA200 (UEL) Series Lock Collar WIR 2 Sides

Predominately used in farming and conveyor equipment for ease of application.
Regreasable spherical out side bearing with extended inner race and eccentric shaft locking collar.

Specifications

AIMS SKU A0104873

Brand FYH

Model Number NA205-16/FYH

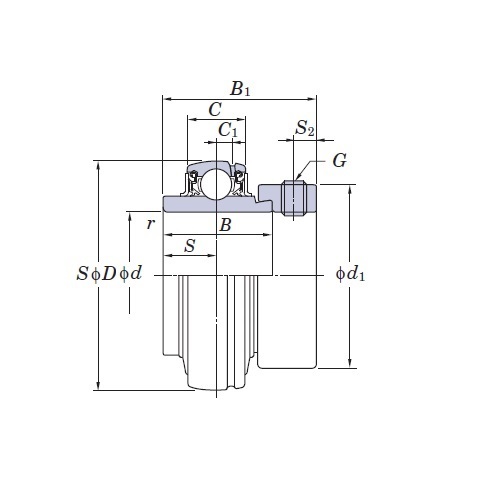

Dynamic Radial Load Rating 14

C (inch) 0.669

C1 (inch) 0.197

r (min) inch 0.039

S (inch) 0.689

S2 (inch) 0.189

Static Radial Load Rating 7.85

Shaft Diameter (d) inch 1

Nominal Bearing Outer (D) inch 2.047

Nominal Inner Ring Width (B) inch 1.374

Nominal Bearing Bore (d1) inch 1.5

Type Ball Bearing Inserts
System of Measurement Imperial
Series NA200
Item Type Eccentric Ball Bearings
