FYH Imperial Ball Bearing Inserts UC200TRL Triple Lip Series

Description

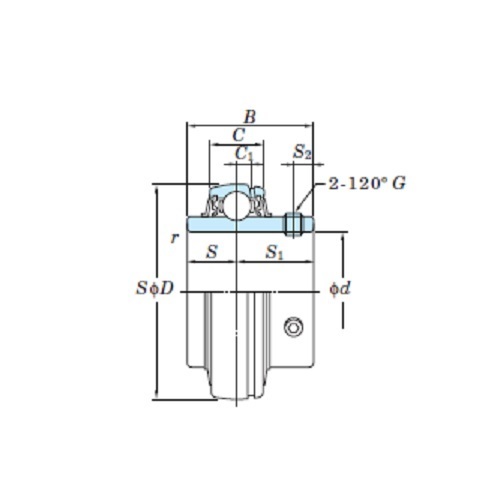

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

Ball Bearing Inserts

Predominately used in farming and conveyor equipment for ease of application.
Regreasable Spherical Out Side Bearing with extended inner race and two shaft locking set screws.

Commonly used Ball Bearings designed for installation into the corresponding Wide Inner Ring Housings. This range is well known for its versatility between bearing and housing options as well as ease of installation.

Specifications

AIMS SKU A0106713

Brand FYH

Model Number UC204-12L2/FYH

Shaft Diameter (inch) 3/4

Nominal Bearing Outer (inch) 1 6/7

Nominal Inner Ring Width (inch) 1 2/9

Type Ball Bearing Inserts
System of Measurement Imperial
Series UC200TRL
Item Type Grub Screw Ball Bearing

Calculate Shipping

Resources

Nachi FYH Bearing Range Catalogue
