FYH Imperial Ball Bearing Inserts UCX Series

Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

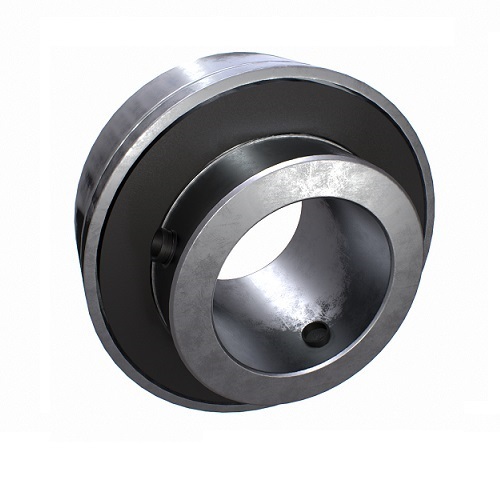

Ball Bearing Inserts UCX Series Grub Screw

Regreasable spherical out side bearing with extended inner race and two shaft locking set screws.
Greater load capacity than the 200 series that is predominately used in farming and conveyor equipment for ease of application

Specifications

AIMS SKU A0104835

Brand FYH

Model Number UCX05-16/FYH

Dynamic Radial Load Rating 19.5

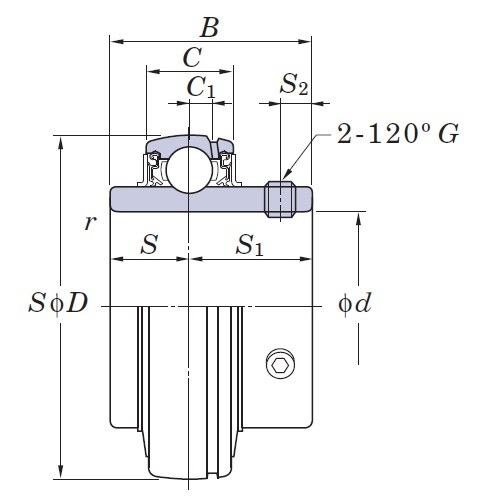

C (inch) 0.748

C1 (inch) 0.197

r (min) inch 0.039

S (inch) 0.626

S1 (inch) 0.874

S2 (inch) 0.236

Static Radial Load Rating 11.3

Shaft Diameter (d) inch 1

Nominal Bearing Outer (D) inch 2.441

Nominal Inner Ring Width (B) inch 1.5

Type Ball Bearing Inserts
System of Measurement Imperial
Series UCX
Item Type Grub Screw Ball Bearing

Calculate Shipping

Resources

Nachi FYH Bearing Range Catalogue
