Specifications
- AIMS SKU A0104861
- Brand FYH
- Model Number SA201-8/FYH
- Dynamic Radial Load Rating 9.55

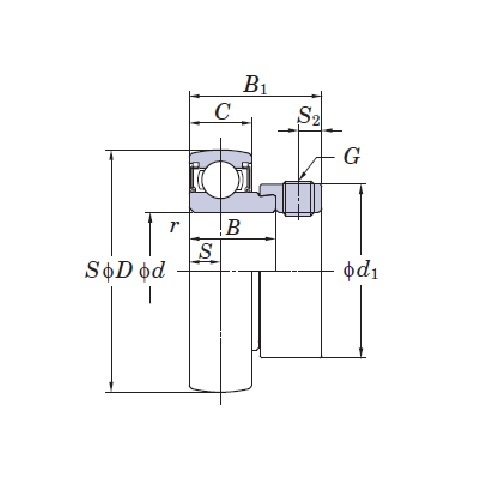

- C (inch) 0.472
- r (min) inch 0.024
- S (inch) 0.236
- S2 (inch) 0.189
- Static Radial Load Rating 4.8
- Shaft Diameter (d) inch 1/2
- Nominal Inner Ring Width (B) inch 0.784
- Nominal Bearing Bore (d1) inch 1.126
- Nominal Bearing Outer (d) Inch) 1.575
- Type Ball Bearing Inserts
- System of Measurement Imperial
- Series SA200
- Item Type Eccentric Ball Bearings
SKU: A0104861

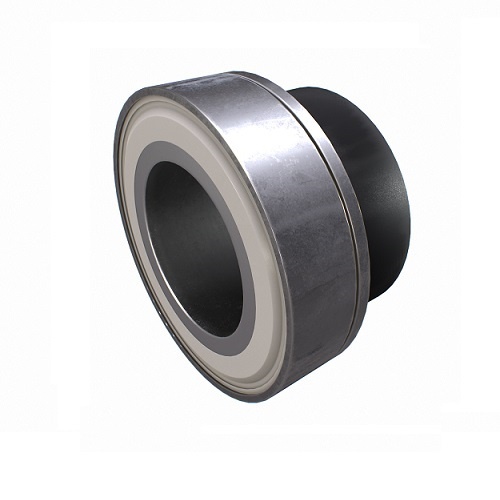

FYH Ball Bearing Inserts SA201-8 Eccentric Collar, 1/2'' Shaft Diameter
Ball Bearing Inserts SA200 (AEL) Series Lock Collar
$19.21
