Specifications

AIMS SKU A0104893
Brand FYH
Model Number ER204/FYH

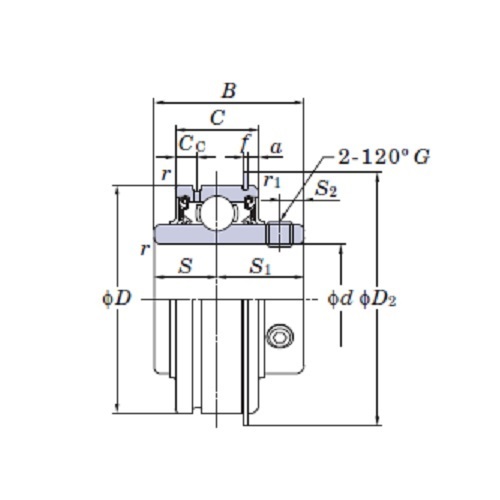

D2 (mm) 52.5
Nominal Bearing Outer (inch) 1.85
C (mm) 0.630
Dynamic Radial Load Rating 12.8
Static Radial Load Rating 6.65
r (min) mm 0.039
S (mm) 12.7
S1 (mm) 18.3
S2 (mm) 5
r1 (min) mm 0.02
Cc (mm) 4
A (mm) 2.38
F (mm) 1.07
Shaft Diameter (d) mm 20
Nominal Bearing Outer (D) mm 1.850
Nominal Inner Ring Width (B) mm 1.22

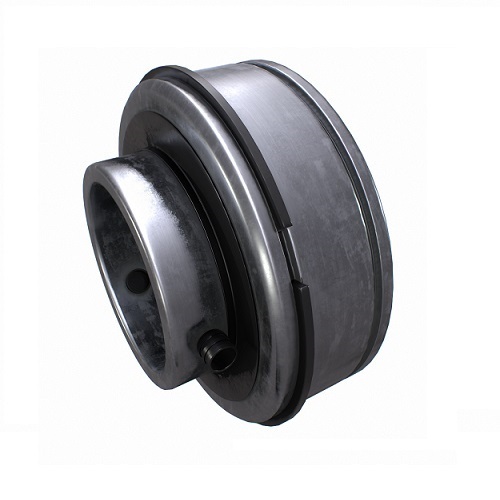

• Type Ball Bearing Inserts
• System of Measurement Metric
• Series ER200/SER200
• Item Type Grub Screw Ball Bearing
