Specifications

AIMS SKU A0104862
Brand FYH
Model Number SA201/FYH

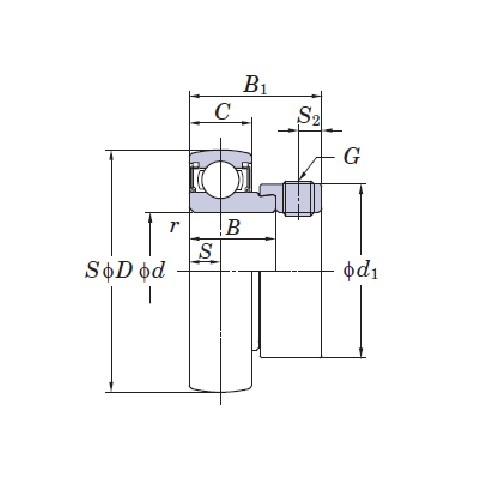

C (mm) 12
Dynamic Radial Load Rating 9.55
Static Radial Load Rating 4.8
r (min) mm 0.6
S (mm) 6
S2 (mm) 4.8
Shaft Diameter (d) mm 12
Nominal Bearing Bore (d1) mm 28.6
Nominal Bearing Outer (D) mm 40
Nominal Inner Ring Width (B) mm 19
• Type Ball Bearing Inserts
• System of Measurement Metric
• Series SA200
• Item Type Eccentric Ball Bearings
