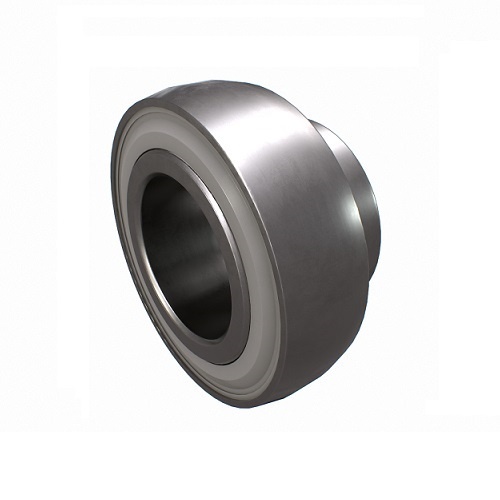

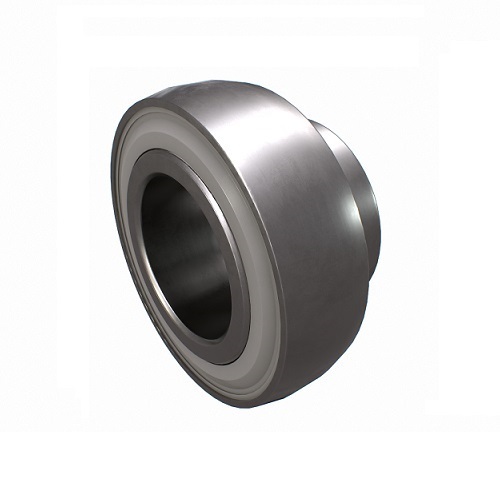

FYH Metric Ball Bearing Inserts SB200 Series

Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

SB200 Series Grub Screw WIR 1 Side

Predominately used in farming and conveyor equipment for ease of application.
Non regreasable spherical out side bearing, flush back and two shaft locking set screws.

Specifications

AIMS SKU A0104848

Brand FYH

Model Number SB201/FYH

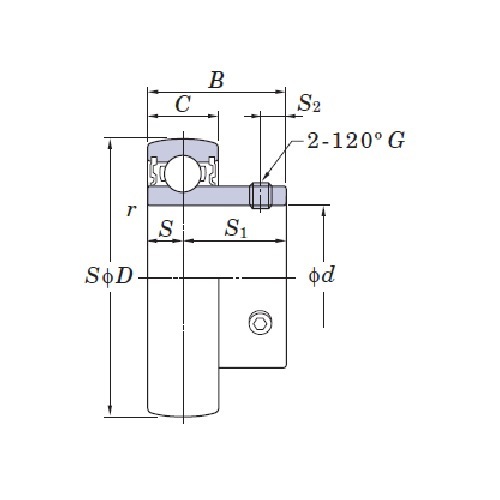

C (mm) 0

Dynamic Radial Load Rating 9.55

Factor 13.2

Static Radial Load Rating 4.8

r (min) mm 0.6

S (mm) 6

S1 (mm) 16

S2 (mm) 4

Shaft Diameter (d) mm 12

Nominal Bearing Outer (D) mm 40

Nominal Inner Ring Width (B) mm 22

Type Ball Bearing Inserts
System of Measurement Metric
Series SB200
Item Type Grub Screw Ball Bearing
