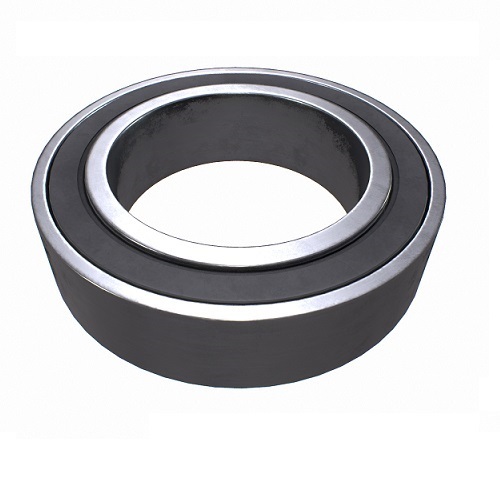

FYH Metric Ball Bearings Inserts UK200 Series

Description

UK200 Series Tapered Bore

Predominately used in farming and conveyor equipment for ease of application.
Regreasable spherical out side bearing with extended inner race and adapter sleeve shaft locking

Specifications

AIMS SKU A0104822

Brand FYH

Model Number UK205/FYH

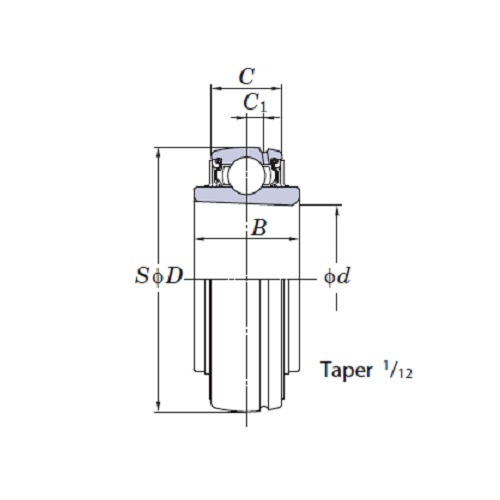

C (mm) 17

C1 (mm) 5

Dynamic Radial Load Rating 14:Static Radial load rating:7.85

Factor 13.9

Shaft Diameter (d) mm 20

Nominal Bearing Bore (d1) mm 25

Nominal Bearing Outer (D) mm 52

Nominal Inner Ring Width (B) mm 21

Type Ball Bearings Inserts
System of Measurement Metric
Series UK200
Item Type Tapered Ball Bearing
