Specifications

AIMS SKU A0147807
Brand FYH
Model Number P203/FYH

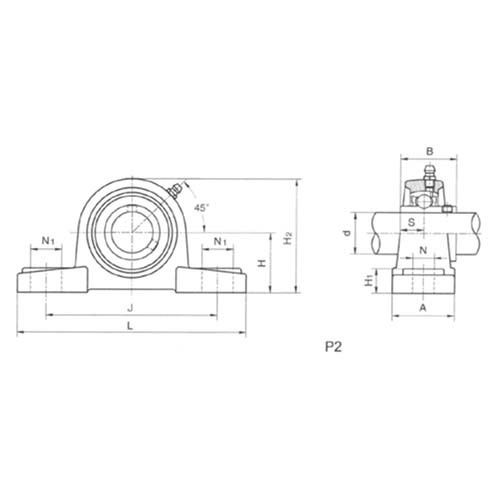

L1 (mm) 38
Bolt Size (mm) M10
Shaft Diameter (d) 12 - 17mm ( 1/2 - 5/8")
Shaft Diameter d (mm) 12
Static Load (c0r) kN 6.65
Dynamic Load (cr) kN 12.8
N1 (mm) 18
N (mm) 13
H1 (mm) 12
A0 (mm) 127
Factor Fo 13.2
L (mm) 127
h2 (mm) 60
H (mm) 30.2
b (mm) 31
A (mm) 38
S (mm) 12.7
A1 (mm) 95

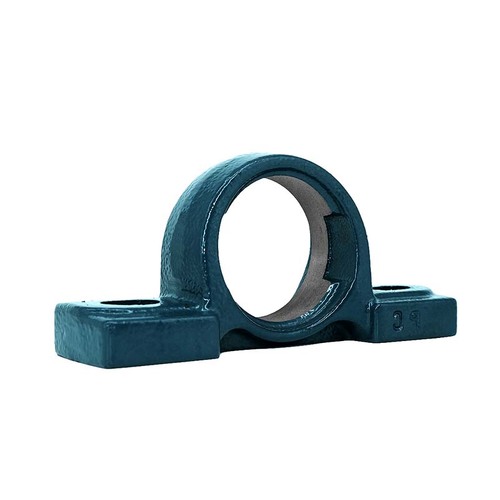

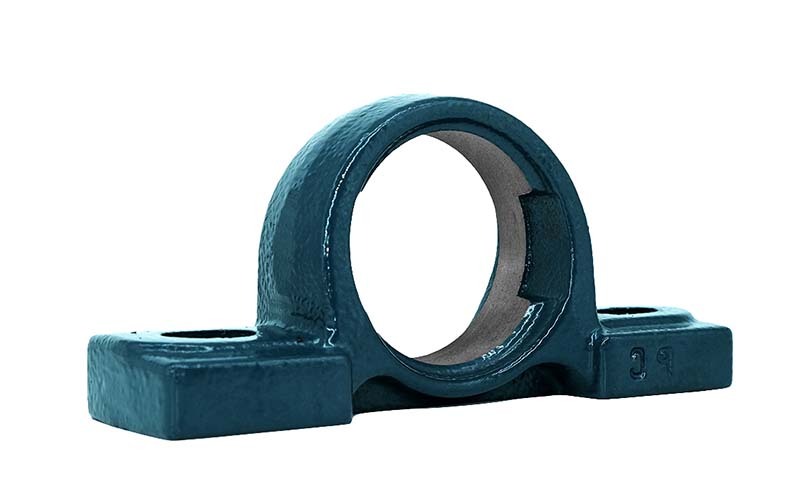

• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Light Pillow Block
