Specifications

AIMS SKU A0203764
Brand FYH
Model Number NA311-32/FYH

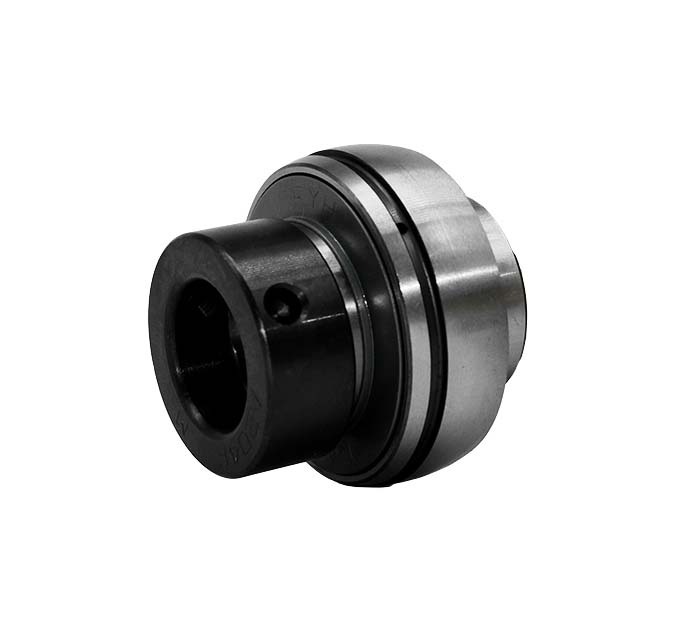

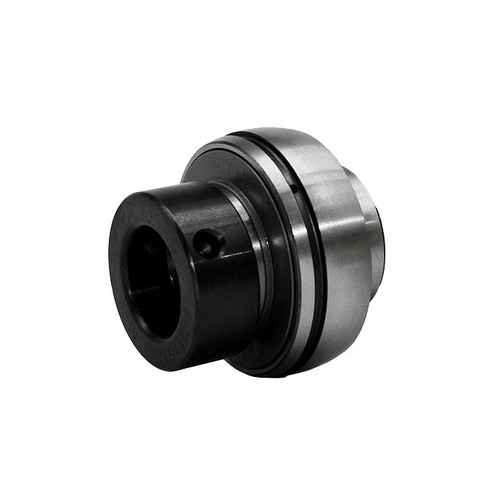

Type Ball Bearing Inserts
Set Screw Brg. Bore - G (in) 3/4
Series NA300
Set Screw Brg. Bore - G (mm) M20
Dimensions (d1) in 2.96
Dimension (in) C 1.34
Dimension (in) B1 2.87
Dimension (mm) B1 73
Dimension (in) B 2.19
Dimension (in) D 4.72
Dimension S (in) 1.09
Dimension (mm) D 120
Dimension (mm) B 55.6
Shaft Diameter (d) 2"
Basic Load Rating C0r (kn) 45
Basic Load Rating Cr (kn) 71.6
Factor f0 13.2
Shaft Diameter d (mm) 50.8
Dimension (mm) C 34
Dimension S (mm) 27.8
Dimensions (D1) mm 75
