Description

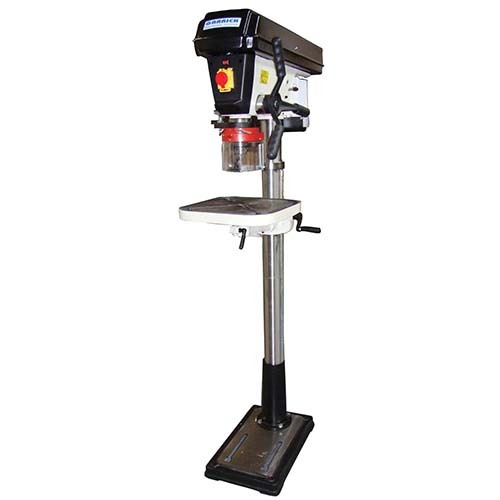

Garrick Heavy Duty Drill Press

Industrial Drill Press
Square tables for larger work area, with ‘T’ slots for solid clamping
Tables tilt and rotate
Solid one piece Cast Iron operating handles
Safety Guard with flip up cover over chuck as standard
Emergency stop switches
Heavy-duty precision depth stops
Quick action, positive motor adjustment for belt tensioning
Rack & pinion table height adjustment
Column & Quill precision machined from thick wall tube for rigidity
Work light under head (bulb not included for transport reasons)
Powerful 240V Aluminium TEFC motors
Includes Drill Chuck & Arbor, Chuck Key and Drill Drift

Also available in Models:

DP20
DP25
DP32

Specifications

AIMS SKU A0127542

Brand Garrick Herbert

Model Number DP25

Barcode Number 9343662001697

Max Capacity (mm) 25

Overall Height (mm) 1650

Chuck Size (mm) 3 - 16

Spindle Travel (mm) 80

Column Diameter (mm) 80

Speed (rpm) 120 to 2580

Max Drilling Capacity (mm) 25

No. of Speeds 12

Quill Diameter 52

Table Dimensions (mm) 345 X 345

Carton Dimensions 1440 x 650 x 320

Weight (kg) - Nett I Gross 108/117

Drill Press Swing (mm) 432

Drill Press Spindle Taper MT3

Type Bench Drill Press
Item Type Heavy Duty
Type Of Mounting Pedestal Mounted
