Gates 1552-S8M-30PK Micro-V Custom Backed S8M Section

Description

** This belt can be ordered in a custom width of your choice. Please contact us to request for a quotation **

Descriptions

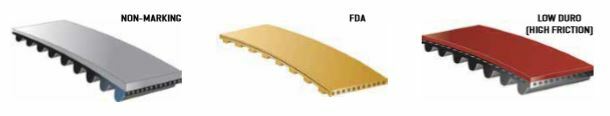

Gates offer a range of PowerGrip® synchronous belts with various style backings including Micro-V® and custom compounds
Micro-V® backings are used in synchronous applications that require synchronisation on one shaft and have the ability to run a pulley o? the back of the belt, as in ?our mill and some vacuum cleaner applications

Dimensions

Section: S8M
Pitch: 8 mm
Pitch Length: 1552 mm
Teeth: 194
Belt Width: 106.8 mm

Construction

Similar in construction to our standard PowerGrip® synchronous belts
Micro-V® backing
Neoprene body provide protection against grime, grease, oil and moisture
Fibreglass tensile cords
Tough nylon facing protects and reinforces the tooth surface.

Advantages

Micro-V® allows for slip due to shock loads
No lubrication required
No need for constant re-tensioning

Specifications

AIMS SKU A0026956

Brand Gates

Model Number 1552-S8M-30PK

Type Powergrip - Curvilinear Pitch

System of Measurement Metric

Material Fibreglass Cord

Timing Belt Code 1552-S8M-30PK

Section S8M

Length (mm) 1552

Belt Width (mm) 106.8

Number of Teeth 194

Teeth Depth (mm) 3

Pitch (mm) 8

Depth (mm) 5.1

Series Gates Micro-V Custom Backed
