Descriptions

• Idlers can be used to take up extra belt length and provide adjustment for tensioning belt drives
• Idler pulleys and sprockets can alter belt paths and clear obstructions
• Use with Synchronous Belt (Pitch=8mm, L, H; Width=Up to 38m)
• Use with V-Belt (3-4 Rib SPZ/XPZ or 3V/3VX, 2 Rib A/AX)

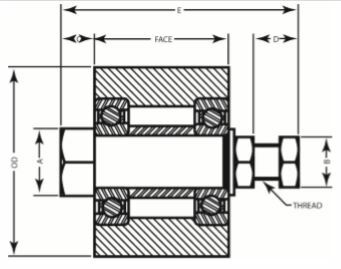

Dimensions

• Outside Diameter: 4.25 in
• Face Width: 2 in

Construction

• Flat Idler Pulleys contain sealed ball bearings and an integral shaft for mounting to our adjustable idler brackets

Advantages

• Lubrication and maintenance are not required
• Suitable for a range of synchronous and V-belts
