Description

** This belt can be ordered in a custom width of your choice. Please contact us to request for a quotation **

Descriptions

  • Powergrip® HTD® 8M and 14M belts are used in high performance drives in the machine tool, paper and textile industries where durability and low maintenance are required.
  • Powergrip® HTD® 3M and 5M belts are suitable for domestic appliances, office machines, electric hand tools and for applications in the processing and chemical industry.

Dimensions

  • Section: 5M
  • Pitch Length: 670 mm
  • Pitch: 5 mm
  • Belt Width: 25 mm
  • T: 2.1 mm
  • B: 3.8 mm
  • Teeth: 134
  • Curvilinear (round) tooth form improves stress distribution and allows higher overall loading compared to trapezoidal tooth forms
  • Aramid tensile cords
  • Tough nylon facing protects and reinforces the tooth surface
  • Durable elastomeric backing protects against environmental pollution as well as frictional wear if power is transmitted from the back of the belt -30°C to +100°C

Specifications

  • AIMS SKU A0031477
  • Brand Gates
  • Model Number 9294-3198
  • Barcode Number 770075388272
  • Type Synchronous Belt - Special
  • System of Measurement Metric
  • Material Aramid
  • Timing Belt Code 670-5M-25K
  • Section 5M
  • Length (mm) 670
  • Belt Width (mm) 25
  • Number of Teeth 134
  • Teeth Depth (mm) 2.1
  • Pitch (mm) 5
  • Depth (mm) 3.8
  • Series Gates PowerGrip HTD Timing Belt
SKU: A0031477

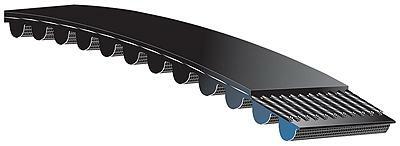

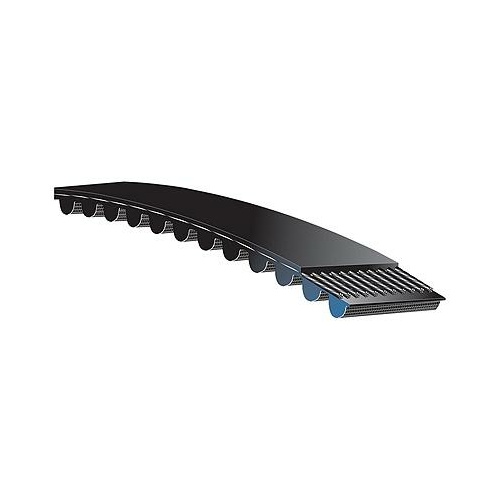

Gates 670-5M-25K PowerGrip Aramid Belt Classical Section (9294-3198)

Gates Powergrip Aramid Synchronous Belt

$58.10
RRP $85.45
SAVE $27.35 (32%)
