Description

*** This is old stock but in good condition. There are no returns. You are welcome to inspect at our office if required..***

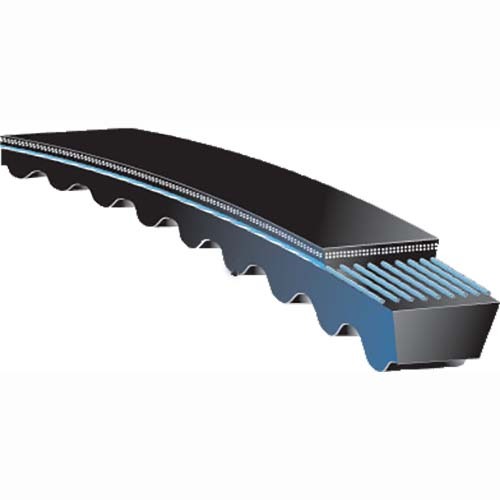

Gates Tri-Power Notched (Cogged) Classical Section Belt

Gates Tri-Power V-belt is built for superior performance on heavy duty drives of classical cross-section
The raw edge construction and special notch design make the Tri-Power belt specially suited for drives requiring small diameter pulleys and back idlers
The ethylene EPDM compound allows the belt to handle extreme temperatures up to +121°C.

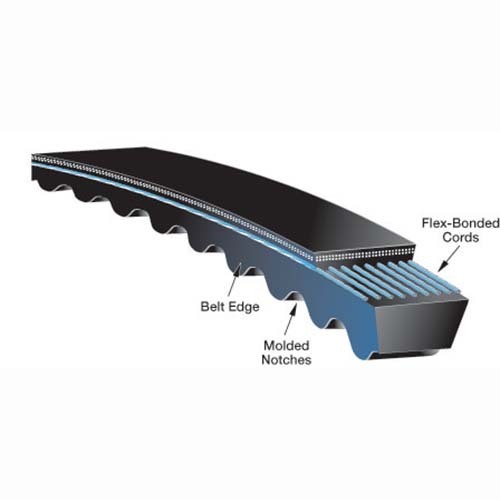

Construction

Classical cross-section
Exclusive ethylene EPDM rubber compound for increased temperature range to resist cracking
Fiber-loaded compound for improved belt stability
Raw edge construction
The moulded notch pattern also reduces noise
Precision-ground sidewalls give a uniform wedging action
Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
Static conductive - ISO 1813 and RMA IP3-3

Advantages

15% capacity increase over wrapped belts
Increase efficiency up to 3% over wrapped belts
Use smaller diameter pulleys than wrapped belts
Moulded notches reduce and evenly distribute thermal and bending stresses
Match free system: all sizes meet Gates V80 tolerances, can be installed without matching
Back idlers can be used

Temperature Range
