Description

Descriptions

  • The wrapped classical section Hi-power® II V-belt has a big reputation for reliability on agricultural and industrial applications
  • Hi-power® II are used in applications across all types of industries and markets. They are renowned for out- performing and out-lasting competitive belts due to their superior construction.
  • Hi-power® II belts that last longer lead to less downtime and maintenance and hence produces more uptime

Construction

  • Classical cross-section
  • Fibre-loaded compound for improved belt stability

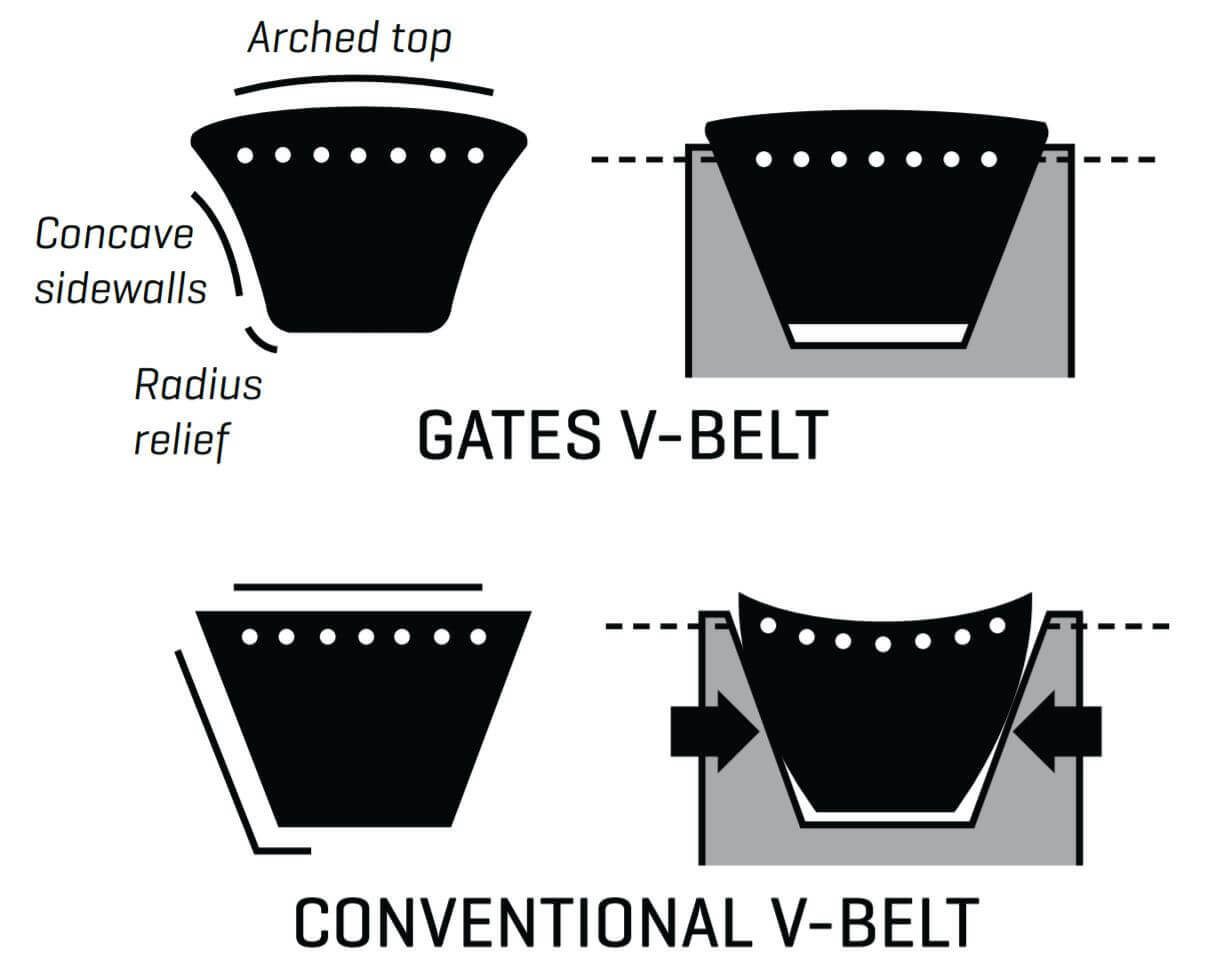

  • Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
  • Flex-Bonded polyester cords for equal load distribution and reduced stress from flexin .
  • Flex-Weave® Cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
  • Static conductive - ISO 1813 and RMA IP3-3

Advantages

  • Premium performance
  • Oil and heat resistant
  • Excellent performance/cost ratio
  • Suitable for dirty/dusty environments
  • Match free system: all sizes meet Gates V80® tolerances, can be installed without matching
  • Back idlers can be used
  • Tolerates mild clutching or drive slip

Temperature Range

  • Range: -35°C to +60°C

Specifications

  • AIMS SKU A0017815
  • Brand Gates
  • Model Number 9006-2240
  • Barcode Number 72053211733
  • V-Belt Code E240

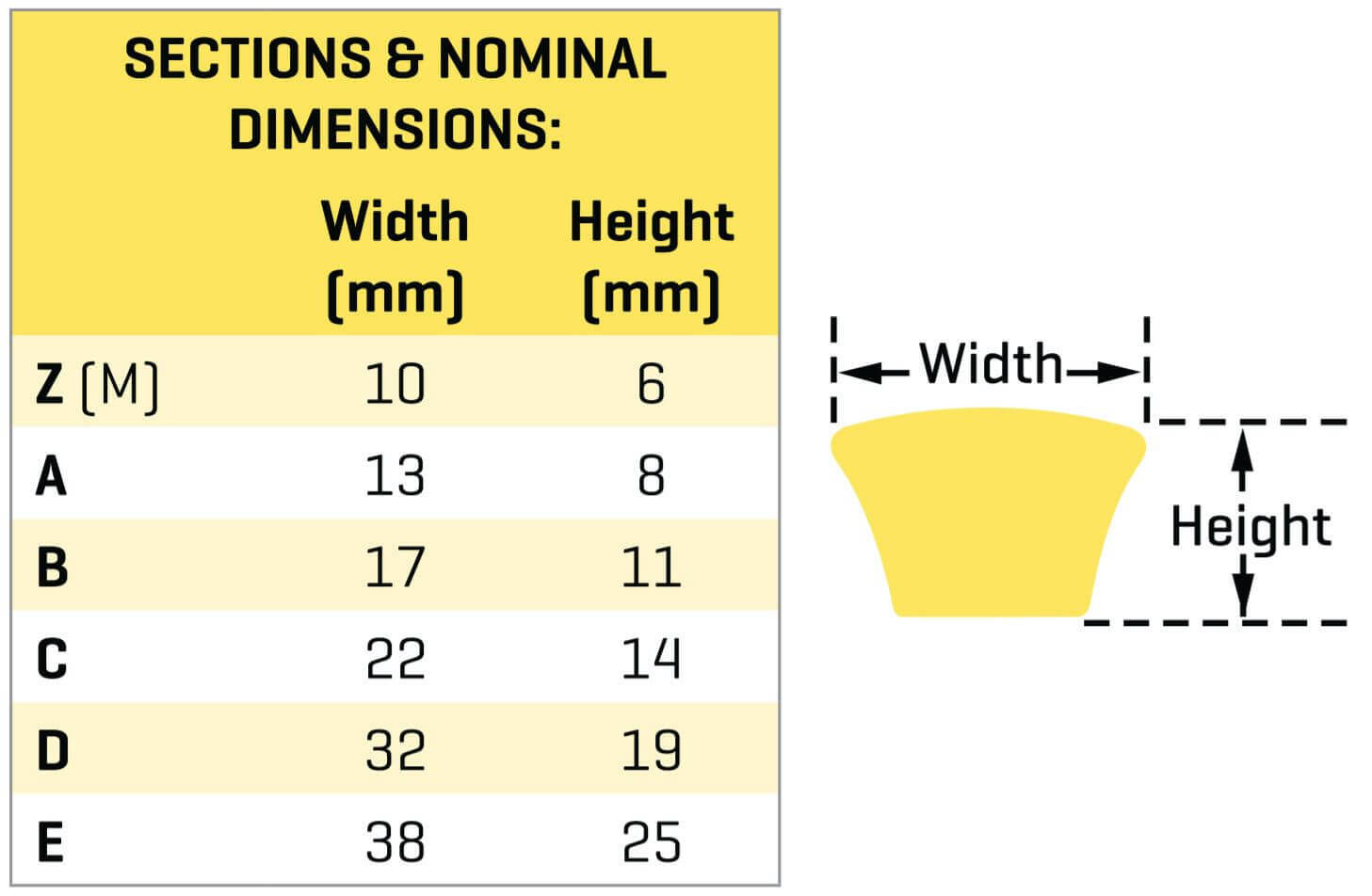

  • Top Width (mm) 38
  • Depth (mm) 25
  • Inside Length (inch) 240
  • Type Wrapped V-Belt - Classical Section
  • System of Measurement Imperial
  • Material Flex-Bonded Polyester Cord
  • Section E
  • Application Heavy-Duty Belt
  • Series Gates Hi-Power Belts
SKU: A0017815

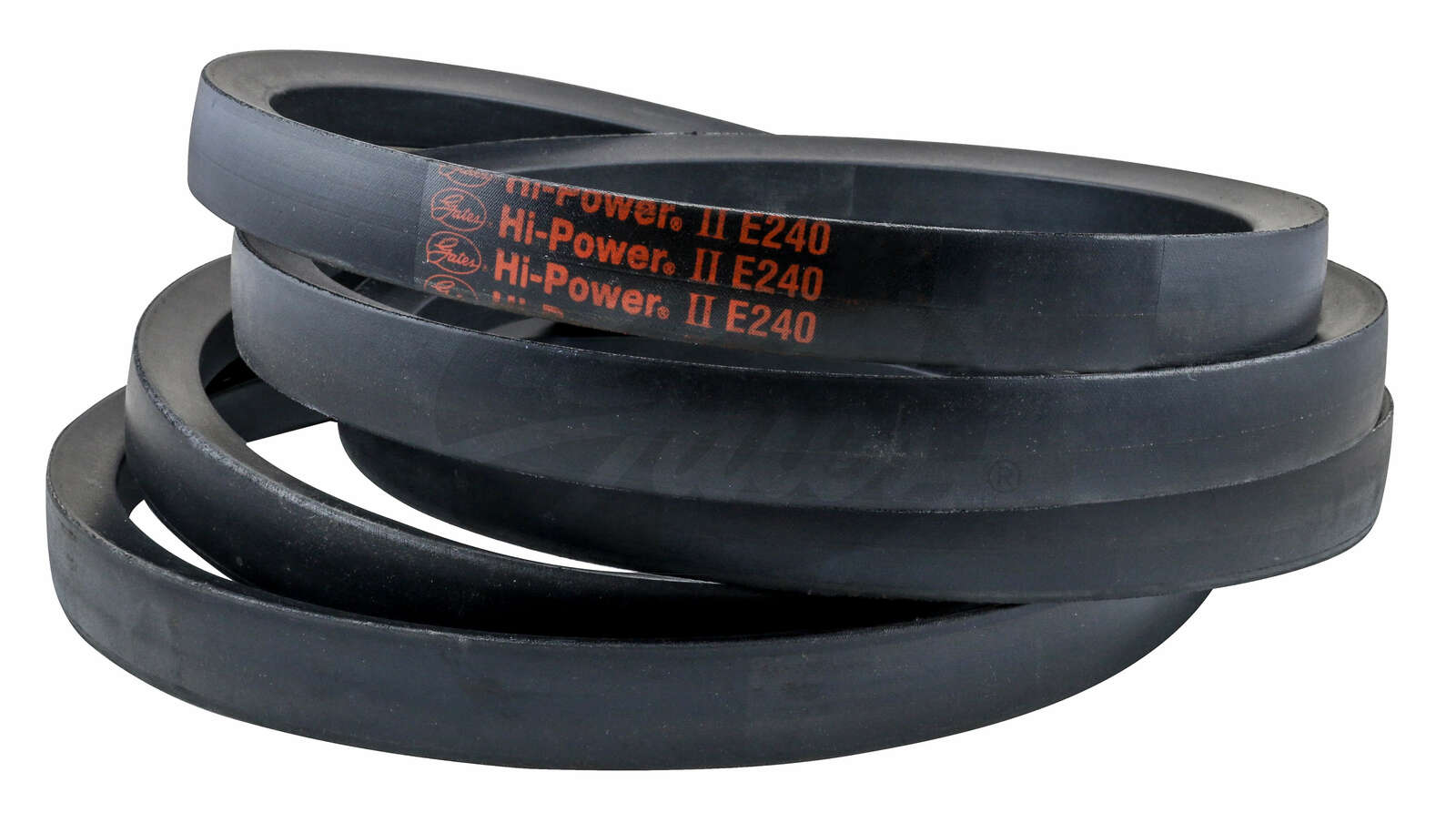

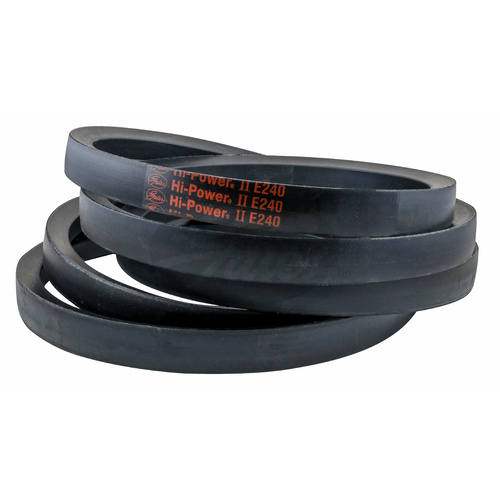

Gates E240 (9006-2240) Hi-Power II Classical Wrapped V Belt

Heavy Duty, Highly Engineered V Belt for Industrial & Ag

$304.35
RRP $1,141.32
SAVE $836.97 (73%)
