Description

Descriptions

  • Gates Hi-power® II Powerband® offers a solution for drives where single belts vibrate, turn over or jump off the pulleys
  • Hi-power® II Powerband® is especially developed for drives subjected to pulsating loads. It consists of several V-belts joined together by a permanent, high strength tie band, thus being tougher than all the belts taken separately.

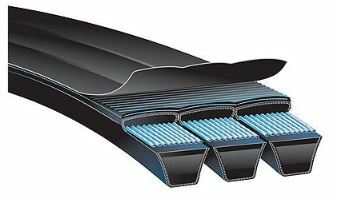

Construction

  • Classical cross-section
  • Strong tie band joins the back of all belts
  • Fibre-loaded compound for improved belt stability
  • Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
  • Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
  • Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
  • Static conductive - ISO 1813 and RMA IP3-3

Advantages

  • Premium performance
  • Better resistance to vibrations
  • High stability and smooth running on the toughest drives
  • Premium performance
  • Excellent performance/cost ratio
  • Suitable for dirty/dusty environments
  • Match free system: all sizes meet Gates V80® tolerances, can be installed without matching
  • Back idlers can be used
  • Tolerates mild clutching or drive slip

Temperature Range

  • Range: -35°C to +60°C

Specifications

  • AIMS SKU A0019782
  • Brand Gates
  • Model Number 9092-2094
  • Barcode Number 72053308440
  • V Belt Code 2/A94
  • Length (inch) 94
  • Ribs 2
  • Top Width (mm) 26
  • Pitch (mm) 15.88
  • Depth (mm) 8
  • Type Powerband - Classical Section
  • System of Measurement Imperial
  • Material Flex-Bonded Polyester Cord
  • Section A
  • Application Heavy-Duty Belt
  • Series Gates Hi-Power II Powerband V-Belt
SKU: A0019782

Gates 2/A94 (9092-2094) Hi-Power II PowerBand Classical V Belt

Powerband - Classical Section - Heavy Duty Belt

$126.24
RRP $315.59
SAVE $189.35 (60%)
5/5 based on 1 review.
See all reviews

Choose a different size/variant

Calculate Shipping

Browse other products under

Banded Classical Wrapped Belts

Browse other products by

Gates

Reviews

The right belt

"I needed a new belt for my mower deck, the original was a ridiculous price so the dealer told me to use 2 x single belts. This did not work for long, but then I found the Gates belt at Aims and so far it is doing the job required. Thanks for the great service."

-
