** This belt can be ordered in a custom width of your choice. Please contact us to request for a quotation **

Descriptions

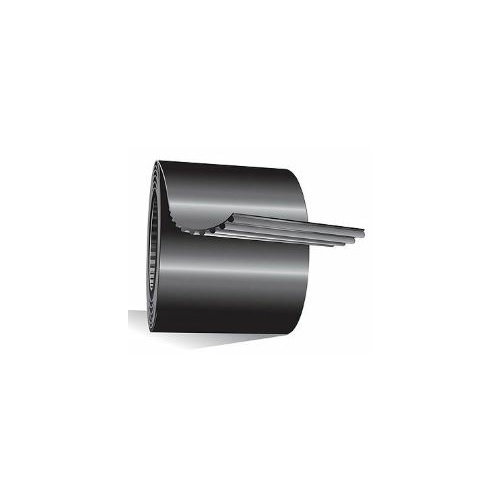

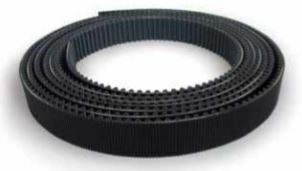

  • Long Length belting is a special alternative to the timing chain for reverse positioning drives
  • Open-end synchronous belting is suitable for linear movements (automated doors, automated warehouse conveyors and elevators), accurate positioning (machine tools, x-y coordinate machines) and reversal drives (computers, printers and office equipment)
  • Gates Long Length belting is available in various sizes, constructions and tooth designs to cover a wide range of loads, speeds and applications

Dimensions

  • Section: 8M
  • Roll Length: 30 m
  • Cord Type: Aramid
  • Pitch: 8 mm
  • Belt Width: 20 mm
  • T: 3.4 mm
  • B: 6 mm

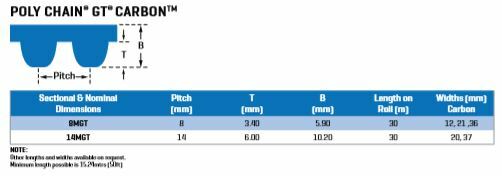

Construction (Poly Chain GT Carbon)

  • Carbon fibre tensile cord
  • Polyurethane teeth and backing
  • Fabric reinforced teeth

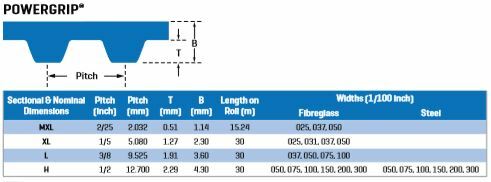

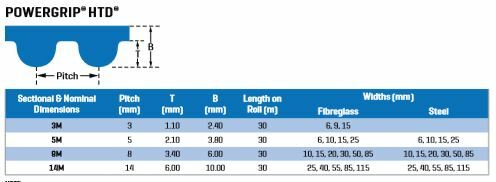

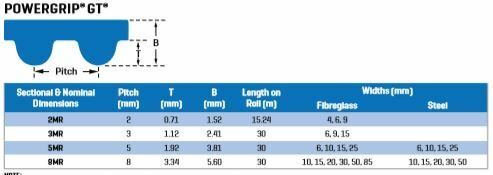

Construction (PowerGrip GT, PowerGrip HTD, PowerGrip)

  • Fibreglass or steel tensile cords
  • Rubber teeth and backing
  • Nylon tooth facing

Advantages

  • High positioning accuracy, making the belt ideally suited for applications with repetitive movements
  • High power transmission due to the use of sophisticated materials and tooth profiles
  • Positive power transmission with low axial load
  • Length stability due to the use of high modulus tensile members
  • Easy to attach with clamping fixtures
  • Low maintenance
  • No environmental pollution due to lubricants

Temperature Range

  • Range (Polychain): -54°C to +85°C
  • Range (Powergrip): -30°C to + 100°C

Specifications

  • AIMS SKU A0026812
  • Brand Gates
  • Model Number 9308-40395
  • Barcode Number 5412571339505
  • Type Synchronous Belt - Long Length - Rubber
  • System of Measurement Metric
  • Material Aramid
  • Section 8M
  • Length (mm) 30000
  • Belt Width (mm) 20
  • Teeth Depth (mm) 3.4
  • Pitch (mm) 8
  • Depth (mm) 6
  • Series Gates Extended Length PowerGrip HTD Linear Belting
SKU: A0026812

Gates Long (9308-40395) Length HTD 8M 20 (30M) Aramid Cord Rubber Belt

Long Length Belt - Rubber - Synchronous

$874.76
RRP $2,186.91
SAVE $1,312.15 (60%)
