Descriptions

• Belt drives with fixed, or limited adjustment, centre distances require an alternative way to tension it
• Gates idler brackets can be used to tension a belt from the inside or backside using the appropriate attachments
• Use with: 14mm Pitch Idler Sprockets, 30-IDL-BUSH (SF), 40-IDLBUSH

Dimensions

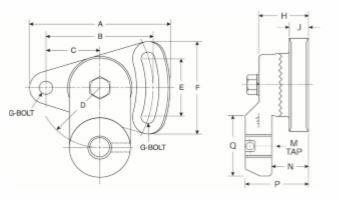

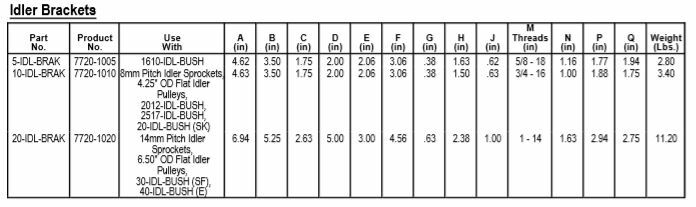

• See Images

Construction

• Gates adjustable idler brackets are designed to be highly versatile, with two different means of adjustment
• Adjustment can be made by pivoting the base flange about the bracket pivot point along the adjustment slot, or by pivoting the idler bracket arm on the base flange

Advantages

• Double-adjustable (base and arm)
• Designed to accept Gates Idler Sprockets, Idler Bushings and Flat Idler Pulleys
• Available with nickel plating for increased corrosion resistance
• Ideal for conveyor drives with fixed centre distances
