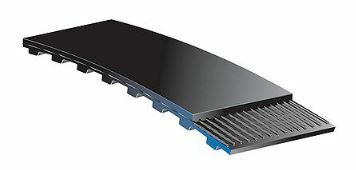

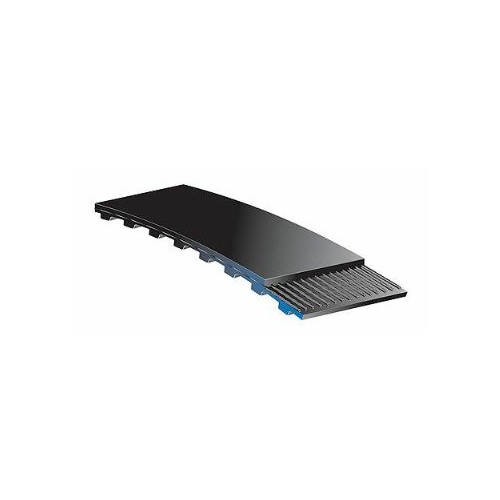

Gates PowerGrip Classical Synchronous Belt - H Section

Description

** This belt can be ordered in a custom width of your choice. Please contact us for a quotation. **

Descriptions

Gates classical synchronous PowerGrip® belt offers a maintenance free and economical alternative to conventional drives like chains and gears
Its application range extends from minimum drives (computer printers) to heavy-duty machinery (oil pumps, etc)

Construction

Trapezoidal tooth form
Precisely formed and accurately spaced elastomeric teeth ensure correct engagement in the pulley grooves
Fibreglass tensile cords
Tough nylon facing protects and reinforces the tooth surface
For MXL sizes and description, see pages 109

Advantages

Power transmission of up to 150kW and speeds of up to 10,000 rpm
Peripheral speed up to 80 m/s
Positive slip-proof engagement
Constant angular velocity
Efficiencies up to 99%
Maintenance free
Wide range of load capacities and speed ratios
Back idlers can be used

Temperature Range

Range: -30°C to +100°C

Specifications

AIMS SKU A0023782

Brand Gates

Model Number 9257-3421

Barcode Number 72053566956

Timing Belt Code 1100H200

Length (inch) 110

Belt Width (inch) 2

Pitch (inch) 1/2

Number of Teeth 220

Teeth Depth (mm) 2.29

Pitch (mm) 12.7

Depth (mm) 4

Type Synchronous Belt - Classical
System of Measurement Imperial
Material Fibreglass Cord
Section H
Series Gates PowerGrip Timing Belt
