Description

** This belt can be ordered in a custom width of your choice. Please contact us for a quotation.**

Descriptions

  • PowerGrip® HTD® 8M and 14M belts are used in high performance drives in the machine tool, paper and textile industries where durability and low maintenance are required.
  • PowerGrip® HTD® 3M and 5M belts are suitable for domestic appliances, once machines, electric hand tools and for applications in the processing and chemical industry.

Construction

  • Curvilinear (round) tooth form improves stress distribution and allows higher overall loading compared to trapezoidal tooth forms
  • Fibreglass tensile cords
  • Tough nylon facing protects and reinforces the tooth surface
  • Durable elastomeric backing protects against environmental pollution as well as frictional wear if power is transmitted from the back of the belt

Advantages

  • No slippage. PowerGrip® HTD® belt teeth mesh smoothly with pulley grooves, reducing speed variations
  • Wide speed range, 3M and 5M are designed for belt speeds up to 80m/s
  • Constant angular velocity
  • Economical operation. No lubrication needed, no need for adjustment due to stretch and wear.
  • High mechanical efficiency. The belt construction minimises heat build-up and since friction is not required to transmit the load, belt tensions are reduced
  •  Most 14M PowerGrip® HTD® belts now meet the ISO 9563 static conductive standard
  • Maintenance free
  • Back idlers can be used

Temperature Range

  • Range: -30°C to +100°C

Specifications

  • AIMS SKU A0025211
  • Brand Gates
  • Model Number 9293-33035
  • Barcode Number 5412571279191
  • Timing Belt Code 350-5M-25
  • Length (mm) 350
  • Belt Width (mm) 25
  • Number of Teeth 70
  • Teeth Depth (mm) 2.1
  • Pitch (mm) 5
  • Depth (mm) 3.8
  • Type Powergrip HTD Synchronous Belt
  • System of Measurement Metric
  • Material Fibreglass Cord
  • Section 5M
  • Series Gates PowerGrip HTD Timing Belt
SKU: A0025211

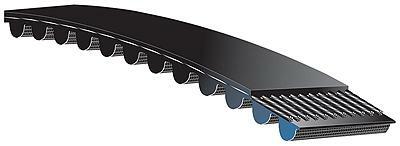

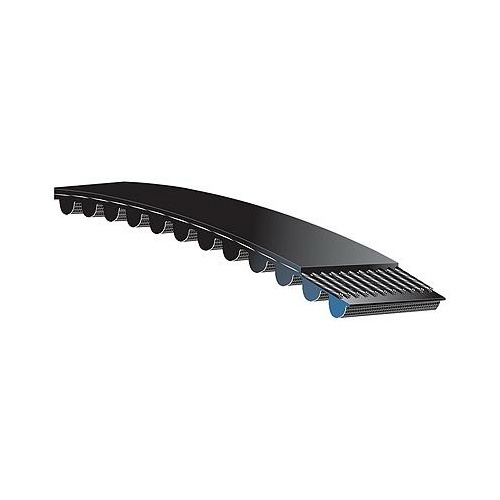

Gates 350-5M-25 PowerGrip HTD Belt Classical Section (9293-33035)

Gates Powergrip HTD Synchronous Belt

$34.52
RRP $55.67
SAVE $21.15 (38%)
5/5 based on 3 reviews.
