Description

Descriptions

  • Pioneered by Gates, these narrow cross-sections can transmit up to 3 times the offer of the classical cross-sections (A, B, C & D) in the same amount of drive space
  • Super HC® also manages speed ranges that a classical V-belt cannot handle. Suitable for all industrial applications, particularly where space, weight and offer capacity are critical.
  • Designed for heavy industry and the harsh demands of the mining market, Super HC® is Gates most popular V-belt construction

Construction

  • Narrow cross-section
  • Fibre-loaded compound for improved belt stability

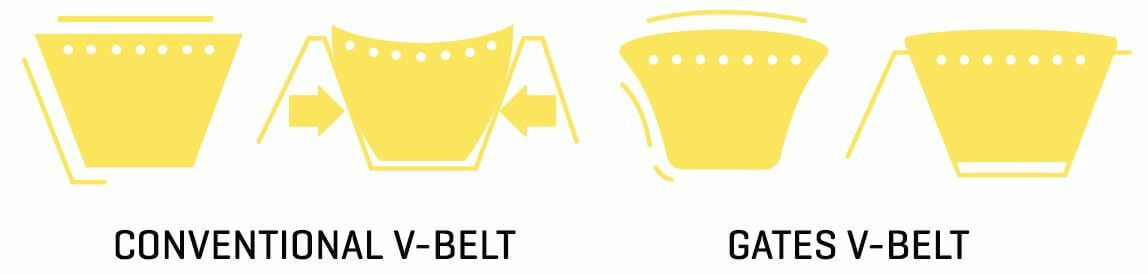

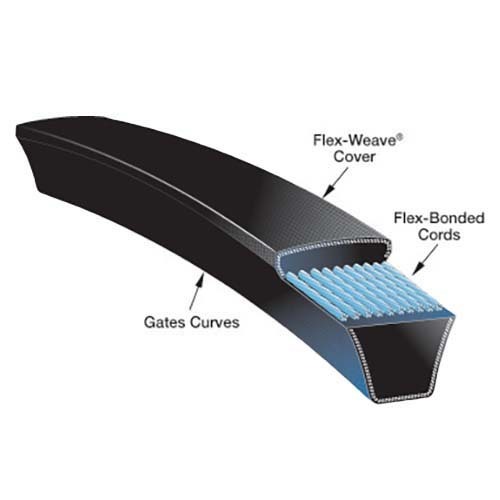

  • Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
  • Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
  • Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
  • Static conductive - ISO 1813 and RMA IP3-3

Advantages

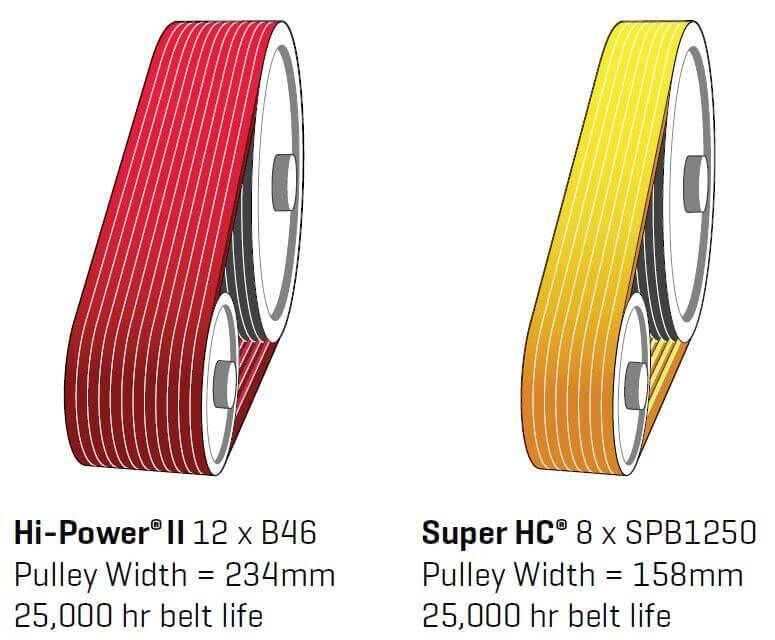

  • Up to 3 times more offer in the same space or same offer in 1/3 to 1/2 less space than classical belts
  • Cost and space savings
  • Longer belt life
  • Suitable for dirty/dusty environments
  • Match free system: all sizes meet Gates V80® tolerances, can be installed without matching
  • Back idlers can be used
  • Tolerates mild clutching or drive slip

Temperature Range

  • Range: -35°C to +80°C

Specifications

  • AIMS SKU A0018446
  • Brand Gates
  • Model Number 9336-1060
  • Barcode Number 72053016543

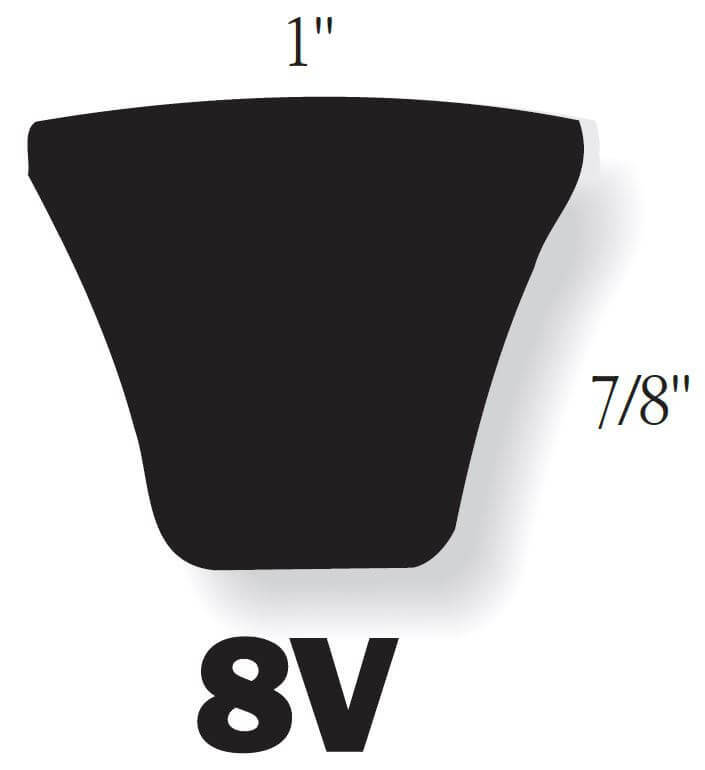

  • V-Belt Code 8V1060
  • Length (inch) 106
  • Top Width (mm) 26
  • Depth (mm) 23
  • Type Super HC - RMA V-Belt - Narrow Section
  • System of Measurement Imperial
  • Material Flex-Bonded Polyester Cord
  • Section 8V
  • Application Heavy-Duty Belt
  • Series Gates Super HC V-Belt
SKU: A0018446

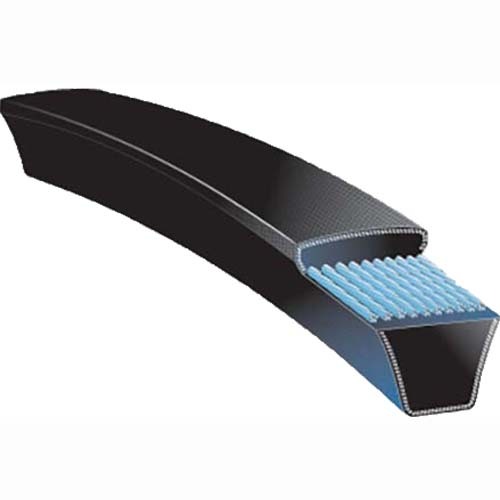

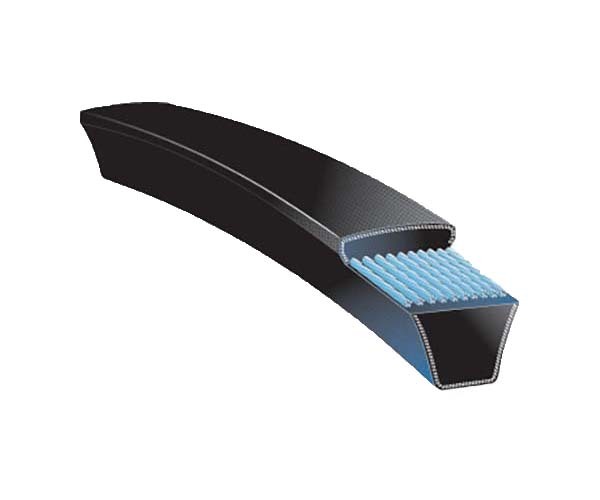

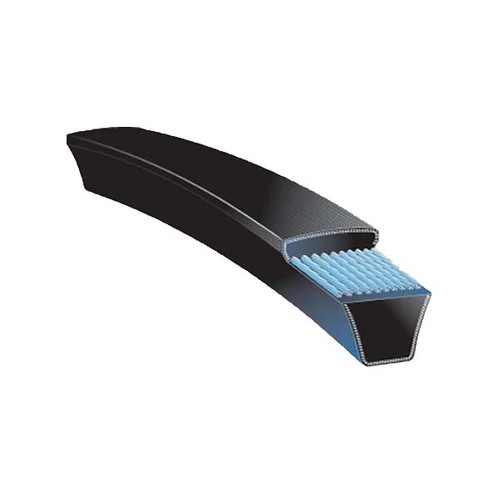

Gates 8V1060 (9336-1060) Super HC Narrow Section V Belt

Super HC - RMA V-Belt - Narrow Section - Heavy Duty Belt

$203.04
RRP $507.58
SAVE $304.54 (60%)
