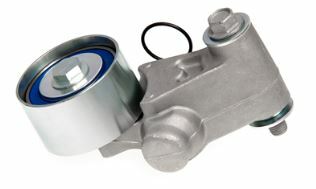

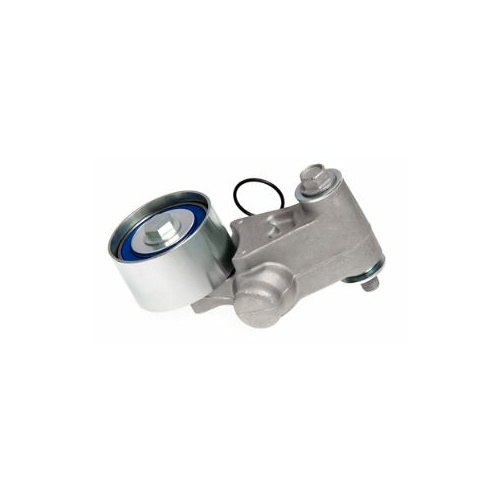

Descriptions

• For applications with high loads and/or angular vibrations, where a mechanical automatic tensioner cannot provide sufficient damping or tensioner movement
• All parts are either OE sourced or engineered by Gates to meet or exceed OE performance standards
• Gates tensioner pin set tool (Part No. 91010) for securing piston

Dimensions and Construction

• Number of Pulleys: 1
• Pulley Inside Bore Diameter: 32 mm
• Pulley Bore Outside Diameter: 60 mm
• Pulley Width: 34 mm
• Material: Steel
• Tensioner Type: Hydraulic
• Contact Surface: Smooth/Backside

Features

• Resists damage from contaminants with the help of metal
• Premium bearings that match or exceed OE-quality
• Very high asymmetric damping
• Robust
• Relatively high cost
• Requires space to package
• Arm length (8-10 mm or 40-60 mm)
• Large wrap angle (70°) possible
