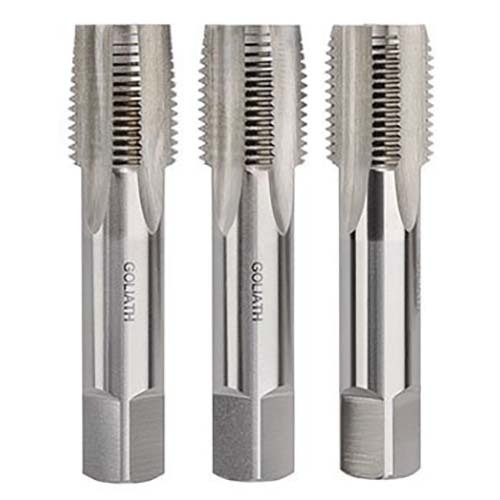

Goliath BSPF HSS Bright Pipe Tap Set

• HSS Bright Finish BSPF Hand and Machine Tap Set.
• Pipe taps are much shorter than a similar size of regular hand tap, but the design features are the same.
• Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance and resistance to micro-chipping, ensuring a long tool life.
• British Standard Pipe - G Series (BSPF) is a pipe thread which is used mainly for mechanical coupling.
• The angle of thread is mainly 55° however for the US method some threads have a 60° angle.
• It is specified according to JIS and ISO R228.
• Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
• Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
• Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
• Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
• Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
