Description

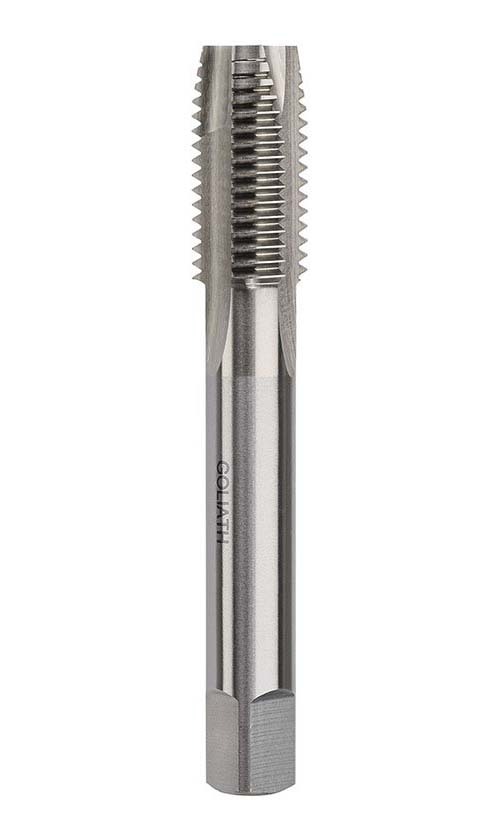

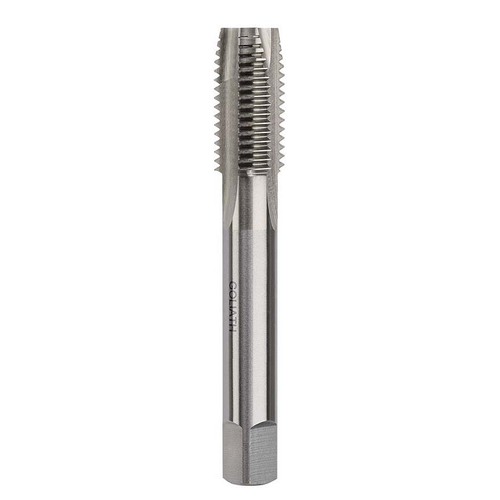

Goliath BSW Spiral Point (Gun) HSS-Co5 Bright Tap

  • HSS-Co (Cobalt) Bright Finish BSW Spiral Point Machine Tap.
  • HSS-Co Spiral Point (Gun Nose) Taps.
  • Spiral point taps, also known as 'Gun nose taps', have straight flutes supplemented by angular cutting faces at the lead.
  • The design of the cutting portion propels the swarf ahead of the tap leaving the flutes clear for the flow of coolant to the cutting teeth.
  • Primarily designed for use in through holes, these taps can be used in blind holes provided that there is ample clearance beyond the threaded section to accommodate the swarf.
  • The advantages of a gun nose tap are the shearing action of the angular cutting faces, which produces a fine finish on the threads and shallower flutes.
  • This allows a stronger cross-section throughout the tap.
  • British Standard Whitworth angle of thread is 55 degrees as opposed to 60 degrees in Metric and Unified threads.
  • This thread form was developed by Sir Joseph Whitworth in 1841.
  • The thread form has rounded roots and crests and is specified in BS84:1956.
  • Manufactured from HSS-Co5, this modern design tap uses straight flutes supplemented by angular cutting faces at the point to produce a fine finish on the threads.
  • Shallower flutes achieve a stronger cross section allowing the tap to withstand greater cutting forces.

Specifications

  • AIMS SKU A0197689
  • Brand Goliath
  • Model Number A07AE2SP
  • Barcode Number 9349009016119
  • Diameter 1/8"
  • No. Of Flutes 3
  • Drill Diameter 2.55mm
  • Tolerance CL 2
  • Length Overall (mm) 48
  • Thread Per Inch (TPI) 40
  • Standard ISO529
  • Thread Form Type BSW
  • Type Spiral Point (Gun) Tap
  • Material HSS-Co5
  • Finish Bright
SKU: A0197689

Goliath 1/8" x 40 TPI BSW Spiral Point (Gun) HSS-Co5 Tap - A07AE2SP

Goliath BSW Spiral Point (Gun) HSS-Co5 Bright Tap

$39.47
RRP $58.80
SAVE $19.33 (33%)
