Description

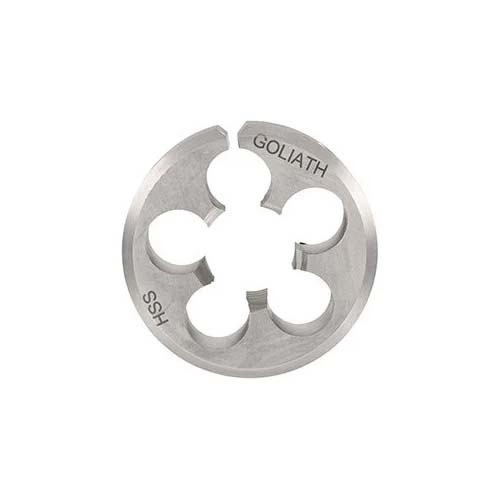

Goliath Metric Fine (MF) HSS Left Hand Button Die

  • HSS Left Hand Circular Split Button Die.
  • HSS Button Dies (also known as Adjustable Dies) are designed for cutting external threads.
  • They are used for threading rods, bolts, and studs, either by hand using a die stock, or by machine using a floating die holder.
  • They also can be used to cut smaller or larger, than factory setting, by utilising the adjusting screws in the die holder.
  • Dies are manufactured with a thread chamfer to aid starting.
  • M2-HSS material provides increased wear resistance and superior thread accuracy.
  • Metric Fine angle of thread is 60 degrees. The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
  • A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
  • The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).

Specifications

  • AIMS SKU A0198452
  • Brand Goliath
  • Model Number F41XEBL
  • Barcode Number 9349009025630
  • Outer Diameter 1"
  • Diameter 10mm
  • Pitch 1mm
  • Thread Form Type Metric Fine
  • Type Button Dies
  • Material HSS
SKU: A0198452

Goliath 10 x 1mm MF 1" HSS Left Hand Button Die - F41XEBL

Goliath Metric Fine (MF) HSS Left Hand Button Die

$148.81
RRP $184.77
SAVE $35.96 (19%)
