Description

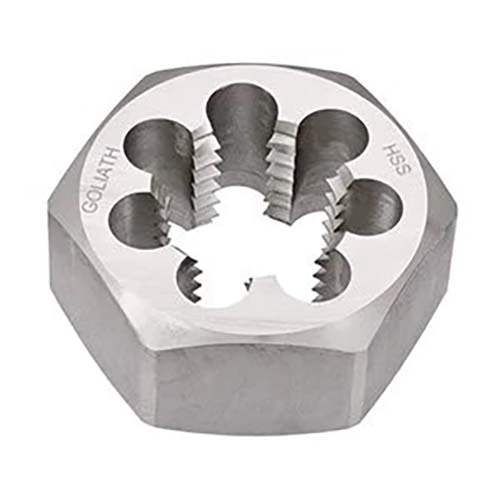

Goliath UNF HSS Hexagonal Die Nut For External Threads

  • High Speed Steel (HSS) Die Nuts
  • Goliath solid High Speed Steel (HSS) Die Nuts are used for cutting of new male threads as well as extending/cleaning/resizing of existing threads where a button die is not suited due to work space restrictions and/or on site thread accessibility.
  • HSS Die Nuts have a vastly longer tool life than Carbon dies as well as superior thread accuracy.
  • Unified National Fine (UNF) thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada, and the UK.
  • The thread profile of UNF is the same as for metric threads and is described in the JIS B0206 standard.
  • The thread is described by its major diameter and the number of threads per inch of length (TPI).
  • When used on external threads this series has a greater tensile stress area than coarse threads of the same size.
  • Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
  • Fine threads are also used where the length of engagement is limited 1-1/4 or where wall thickness demands a fine pitch.

Specifications

  • AIMS SKU A0198797
  • Brand Goliath
  • Model Number FH09DJ
  • Barcode Number 9349009027764
  • TPI 32
  • Diameter No. 10
  • Thread Form Type UNF
  • Type Die Nut
SKU: A0198797

Goliath No. 10G x 32 TPI UNF HSS Hexagonal Die Nut - FH09DJ

Goliath UNF HSS Hexagonal Die Nut For External Threads

$88.52
RRP $109.90
SAVE $21.38 (19%)

Choose a different size/variant

Calculate Shipping

Browse other products under

Die Nuts

Browse other products by

Goliath
