Description

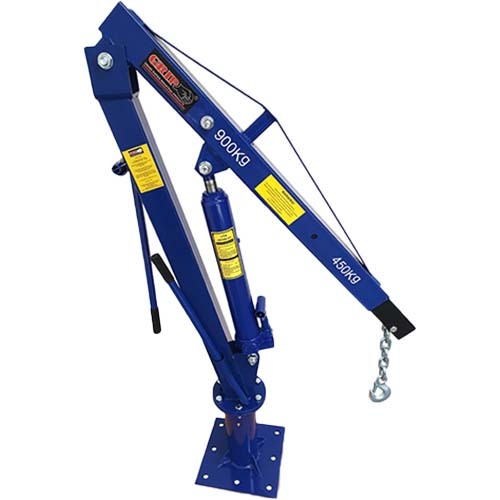

Swivel Base Lifting Crane

  • To safely facilitate the lifting and movement of heavy component objects.
  • Fixed mountable base, but with a 360°swivel movement

Feature

  • Heavy-duty, seam welded construction.
  • Convenient single stage 3 tonne hydraulic long stroke lifting ram.
  • 2 position adjustable boom.
  • Full 360° rotation.
  • Hardened, rated lifting chain and hook.
  • Black baked enamel finish for corrosion resistance.
  • Australian standard compliance.

Specification

  • Maximum working capacity 900kg.
  • 2 position adjustable boom 900kg and 450kg.
  • Hardened, rated lifting chain and hook, with grade 8.8 fitted bolts.
  • N.B. Grade 8.8 bolts recommended for mounting of the base.
  • AS1418.8 Australian Standards compliance.

Specifications

  • AIMS SKU A0124271
  • Brand Grip
  • Model Number 18084
  • Barcode Number 9335319004205
  • Type Lifting Crane
  • Maximum Working Capacity (kg) 900
  • 2 Position Adjustable Boom (kg) 900 & 450
  • Boom Working Range (mm) 870 - 1290
  • Arm Lifting Range (mm) 0 - 2015
  • Base Dimension Length (mm) 270
  • Base Dimension Width (mm) 270
  • Weight (nett) 56kg
  • Base Dimension (mm) 270(L) x 270(W)
  • Dimension (mm) 2 x cartons: 1130(L) x 280(W) x 180(H)mm and 330(L) x 320(W) x 340(H)mm
SKU: A0124271

Grip® Swivel Base Lifting Crane 900kg

Swivel Base Lifting Crane

$696.72
