Grooving Toolholder Clamp (CNR/L) - SECO

Description

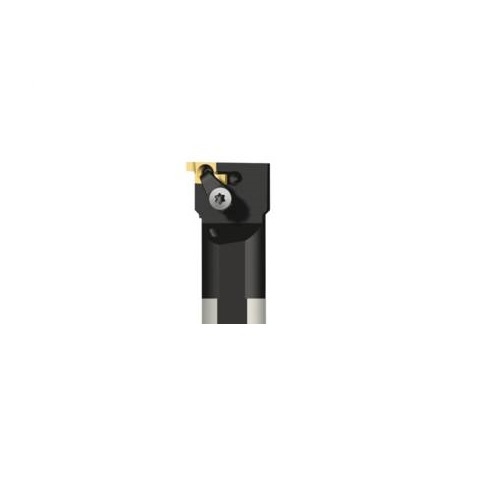

Grooving Toolholder Clamp (CNR/L) Internal

Cylindrical, shank type.
Internal.

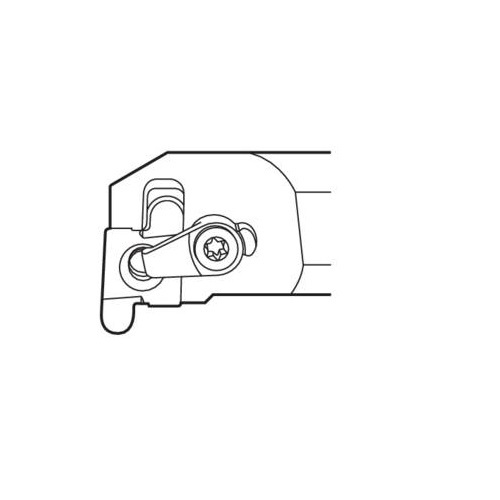

Clamp Type, insert clamping.

About Seco Grooving

No matter the material, component size, surface finish or accuracy requirement, we have a grooving solution that can enhance your productivity and profitability from flexible products that work across a variety of part types to dedicated tools that solve unique challenges.

About Seco K-Style Precision Grooves

The Seco K-Style system is intended for radial and axial as well as external and internal precision grooving.
The range of grooving inserts includes inserts for most groove profiles, such as circlip profiles, O-ring profiles, thread undercut and radius grooves.

Specifications

AIMS SKU A0118663

Brand Seco

Model Number 00072624

Barcode Number 72624000000104

Designation CNL000757-10

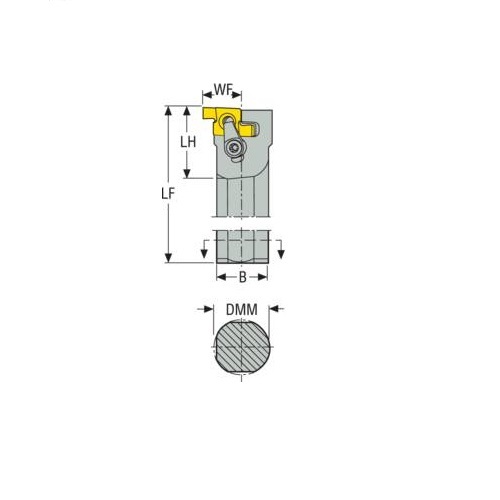

Functional Length (LF) mm 177.8

Connection Text Machine Side (CTMS) 19.05

Direction Of Cutting (hand) Left

Shank Width (b) mm 18

Connection Text Workpiece Side (ctws) 10/12ER

Height Of Tool Holder Shank (H) mm 16.5

Shank Diameter (DMM) mm 19.05

Usable Length (LU) mm 175.5

Functional Width (WF) mm 12.5

Head Length (lh ) Mm 37.6

Cutting Diameter Internal Minimum (dcinn) Mm 24.13

Cutting Diameter Internal Minimum 2 (dcinn2) Mm 24.1

Type Grooving Toolholder
Shank Type Cylindrical
Insert Clamping System (ICS) C
Version (internal/external/both) (ver) Internal
Tool Cutting Edge Angle (kapr) Deg 90.0 deg
