Description

Grooving Toolholder Clamp - Coolant Passage (CNR/L) Internal

  • Cylindrical, shank type.
  • Internal.
  • Clamp Type, insert clamping.
  • Steel with coolant passage.
  • Holder for deep grooving.

About Seco Grooving

  • No matter the material, component size, surface finish or accuracy requirement, we have a grooving solution that can enhance your productivity and profitability from flexible products that work across a variety of part types to dedicated tools that solve unique challenges.

About Seco K-Style Precision Grooves

  • The Seco K-Style system is intended for radial and axial as well as external and internal precision grooving.
  • The range of grooving inserts includes inserts for most groove profiles, such as circlip profiles, O-ring profiles, thread undercut and radius grooves.

Specifications

  • AIMS SKU A0118670
  • Brand Seco
  • Model Number 02411456
  • Barcode Number 11456024000100
  • Designation CNL0020P10DA
  • Functional Length (LF) mm 170
  • Connection Text Machine Side (CTMS) 20
  • Direction Of Cutting (hand) Left
  • Shank Width (b) mm 19
  • Connection Text Workpiece Side (ctws) 10/12ER
  • Height Of Tool Holder Shank (H) mm 18
  • Shank Diameter (DMM) mm 20
  • Usable Length (LU) mm 168.7
  • Functional Width (WF) mm 13.5
  • Head Length (lh ) Mm 26
  • Cutting Diameter Internal Minimum (dcinn) Mm 26
  • Cutting Diameter Internal Minimum 2 (dcinn2) Mm 29
  • Type Grooving Toolholder
  • Shank Type Cylindrical
  • Insert Clamping System (ICS) C
  • Version (internal/external/both) (ver) Internal
  • Tool Cutting Edge Angle (kapr) Deg 90.0 deg
SKU: A0118670

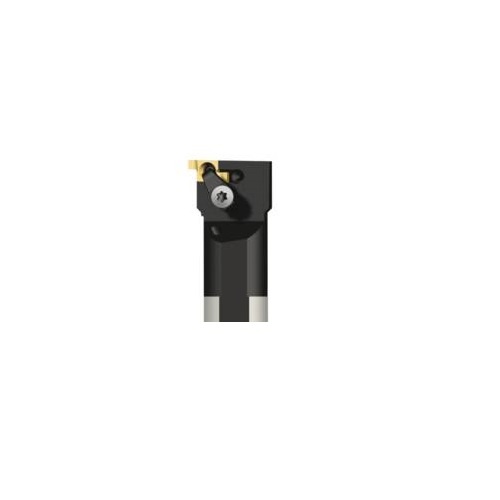

Seco Internal Grooving Toolholder (Clamp) 18 x 19 x 170mm Left CNL0020P10DA

Grooving Toolholder Clamp - Coolant Passage (CNR/L)

$287.76
RRP $359.70
SAVE $71.94 (20%)
