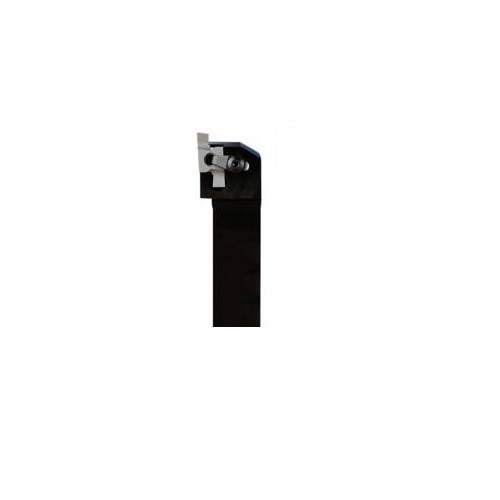

Grooving Toolholder Clamp - Cranked (CER/L) - SECO

Description

Grooving Toolholder Clamp - Cranked (CER/L) External

Square shank, shank type.
External.
Clamp Type, insert clamping.

About Seco Grooving

No matter the material, component size, surface finish or accuracy requirement, we have a grooving solution that can enhance your productivity and profitability from flexible products that work across a variety of part types to dedicated tools that solve unique challenges.

About Seco K-Style Precision Grooves

The Seco K-Style system is intended for radial and axial as well as external and internal precision grooving.
The range of grooving inserts includes inserts for most groove profiles, such as circlip profiles, O-ring profiles, thread undercut and radius grooves.

Specifications

AIMS SKU A0118647

Brand Seco

Model Number 00072566

Barcode Number 72566000000107

Designation CER0504-10Q

Functional Length (LF) mm 101.6

Connection Text Machine Side (CTMS) 12.7

Direction Of Cutting (hand) Right

Shank Width (b) mm 12.7

Connection Text Workpiece Side (ctws) 10/12ER

Height Of Tool Holder Shank (H) mm 12.7

Functional Width (WF) mm 15.9

Head Length (lh ) Mm 22.9

Type Grooving Toolholder
Shank Type Square shank
Insert Clamping System (ICS) C
Version (internal/external/both) (ver) External
