Description

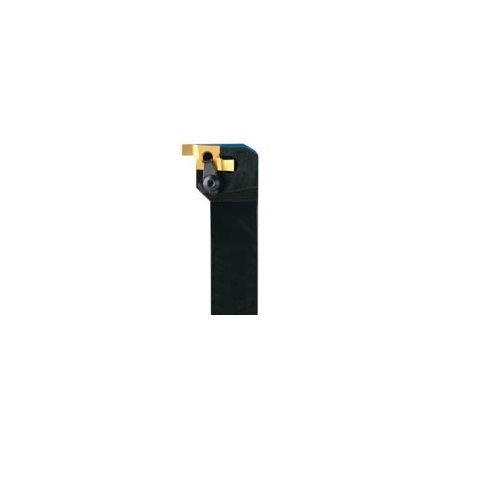

Grooving Toolholder Clamp - Deep Grooving (CEAR/L) External Axial

  • Square shank, shank type.
  • External Axial.
  • Clamp Type, insert clamping.
  • Holder for deep grooving.

About Seco Grooving

  • No matter the material, component size, surface finish or accuracy requirement, we have a grooving solution that can enhance your productivity and profitability from flexible products that work across a variety of part types to dedicated tools that solve unique challenges.

About Seco K-Style Precision Grooves

  • The Seco K-Style system is intended for radial and axial as well as external and internal precision grooving.
  • The range of grooving inserts includes inserts for most groove profiles, such as circlip profiles, O-ring profiles, thread undercut and radius grooves.

Specifications

  • AIMS SKU A0118636
  • Brand Seco
  • Model Number 02411448
  • Barcode Number 11448024000105
  • Designation CEAL2525M10D

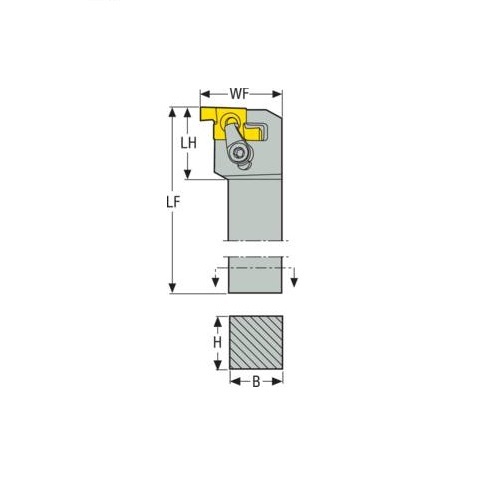

  • Functional Length (LF) mm 150
  • Connection Text Machine Side (CTMS) 2525
  • Direction Of Cutting (hand) Left
  • Shank Width (b) mm 25
  • Connection Text Workpiece Side (ctws) 10/12EAL
  • Height Of Tool Holder Shank (H) mm 25
  • Functional Width (WF) mm 35.4
  • Head Length (lh ) Mm 22
  • Type Grooving Toolholder
  • Shank Type Square shank
  • Insert Clamping System (ICS) C
  • Version (internal/external/both) (ver) External
  • Tool Cutting Edge Angle (kapr) Deg 90.0 deg

Video

SKU: A0118636

Seco External Grooving Toolholder (Clamp) 22 x 35.4 x 150mm Left CEAL2525M10D

Grooving Toolholder Clamp - Deep Grooving (CEAR/L)

$243.76
RRP $304.70
SAVE $60.94 (20%)
