***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

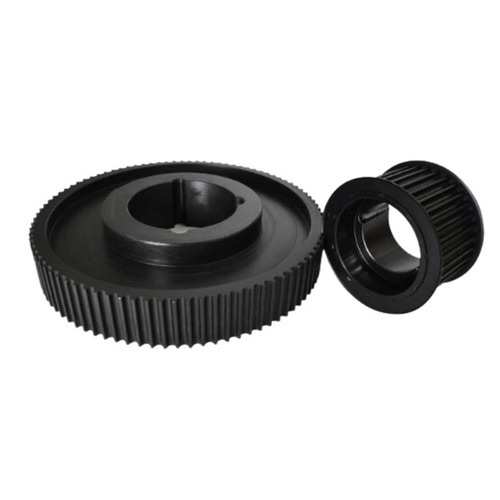

H100 Series Taper Lock Imperial Timing Belt Pulley

  • Imperial Classical Timing Pulley (Taper Lock).
  • 1" Wide-Flanged.
  • Available in H Series, L Series, and XL.

Specifications

  • AIMS SKU A0196281
  • Number of Teeth 14
  • Weight (kg) 0.25
  • Max Bore 28

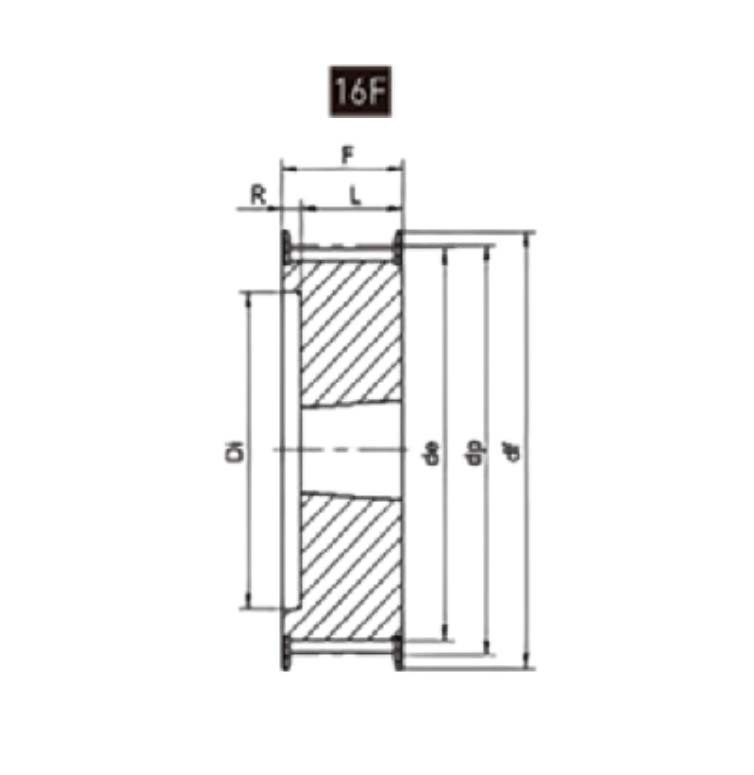

  • F 31
  • R 9
  • L 22
  • Flange (mm) 309
  • Bush 1108
  • de 55.22
  • dp 56.6
  • Type (Timing Belt Pulley) 16F
  • Df 63
  • Di 40
  • Type Taper Lock Timing Pulley
  • Material Steel
SKU: A0196281

14-H-100 Taper Lock Imperial Timing Belt Pulley 14 Tooth 1" Wide Steel

H100 Series Taper Lock Imperial Timing Belt Pulley
